CORE SEVERE DUTY INTAKE VALVES CHEVY PRO-X, LS3X HEAD 2.200"
$399.99
In Stock
Pre-Order
Sold out
Part #: CORE-MAN-11274-8
Couldn't load pickup availability
- Description

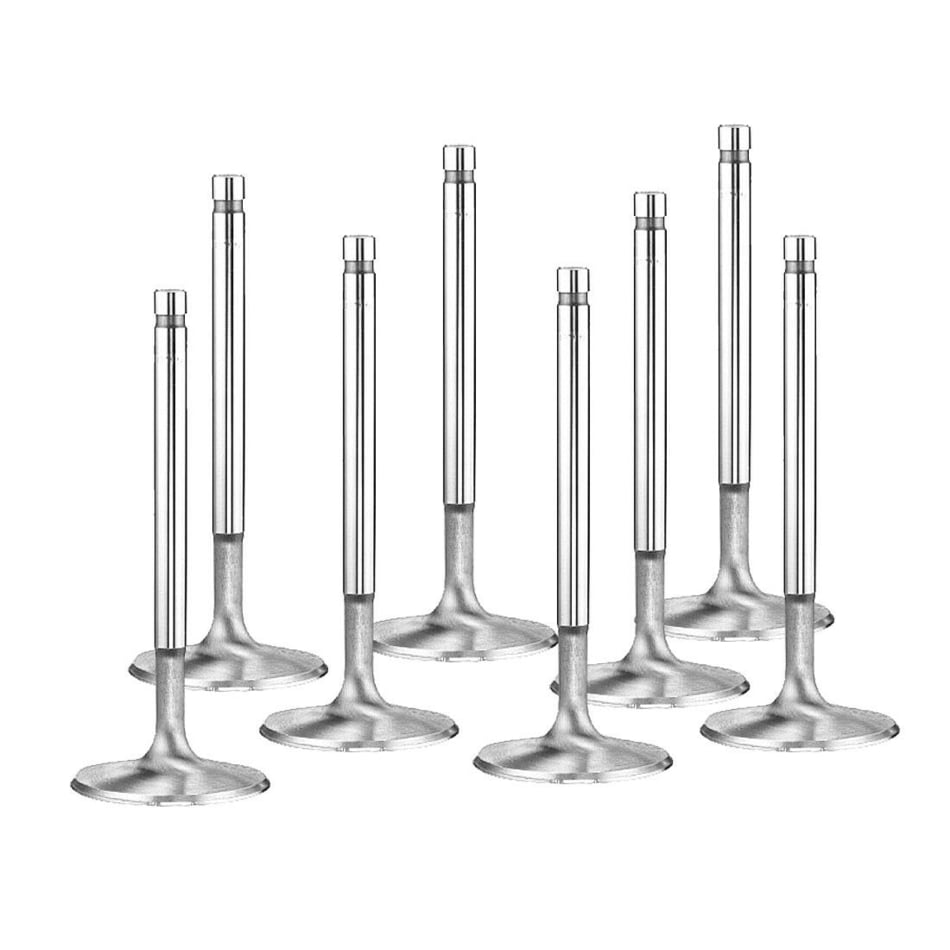

CORE Performance SEVERE DUTY INTAKE VALVES CHEVY PRO-X, LS3X HEAD 2.200" Product Description:
Overview
These CORE Severe Duty intake valves are manufactured by Manley Performance Products to CORE exact specifications right here in the USA. They are designed for CORE Performance Pro-X and LS3X series cylinder heads and are constructed of NK-844 stainless steel.
Manley Performance is indisputably a leading manufacturer of performance and racing components in the world. The reason for Manley's overwhelming success is simple: Quality. Manley offers the best materials in the industry exclusive materials that other manufacturers do not possess.
Sold as a set of 8.
Specifications
| Brand: | CORE | |
| Part Numbers: | CORE-MAN-11274-8 | |
| Other Part Number: | 11274-8 | |
| Part Type: | Valves | |
| Valve Type: | Intake | |
| Head Diameter (in): | 2.200" | |
| Stem Diameter (in): | .3133" | |
| Installed Height: | 1.850 | |
| O/A Length (in): | 5.453" | |
| Tip Length (in): | .290" | |
| Underhead Angle/Radius (deg/in): | 12° x 3/8" | |
| Margin (in): | .070 | |
| Seat Width (in): | .100 | |
| Top of Head (deg): | 7° dish | |
|
Valve Material: |
NK-844 Stainless steel | |
| Valve Weight (Gms): | 131gms | |
| Quantity: | Sold as a set of 8. | |
| In Store Pickup: | Colton, CA, USA |
Application
Pro-X and LS3X cylinder heads.
Warranty
This product, due to it`s intended use, is sold without warranty.
