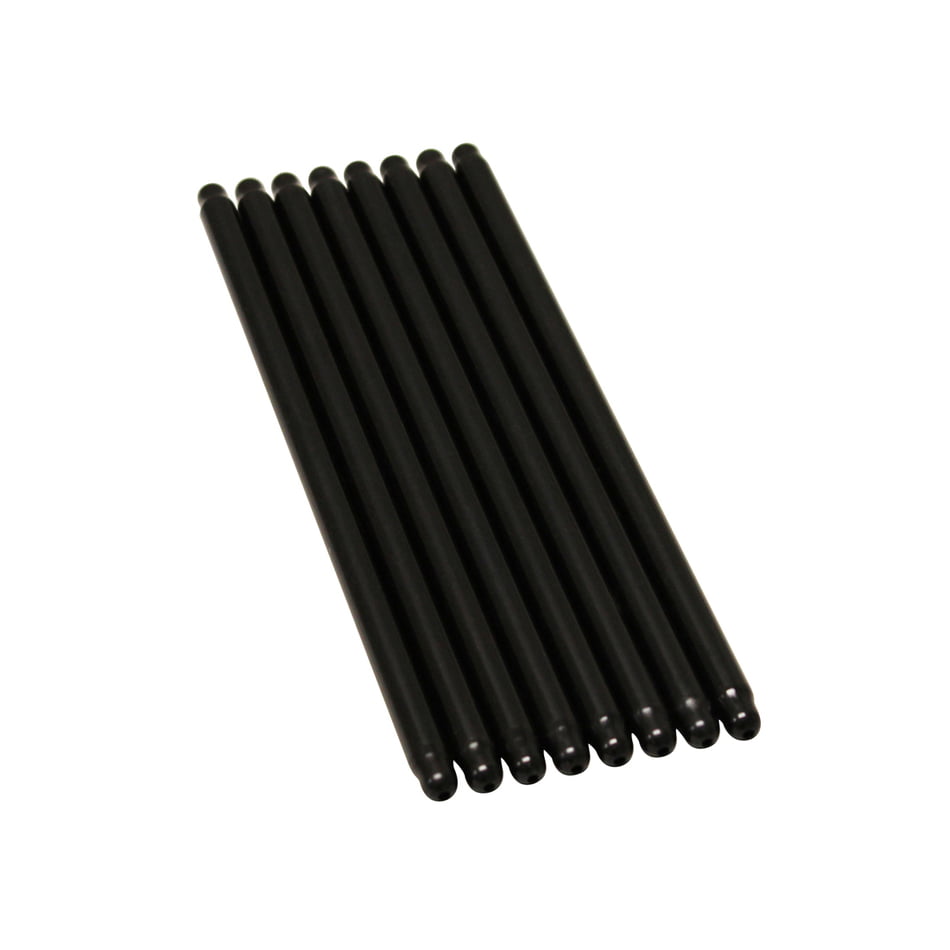

MANLEY 4130 SWEDGED END LS PUSHRODS 3/8" .080" WALL 7.400" LENGTH
Couldn't load pickup availability
- Description
MANLEY 4130 SWEDGED END LS PUSHRODS 3/8" .080" WALL 7.400" LENGTH Product Description:
Overview
These Manley Chevy LS Chromoly Swedged End Pushrods are the perfect solution for your engine needs. They feature meticulously formed ends with exact radii for precise fitment, excellent concentricity, and closely controlled length.
The pushrods also are heat treated and feature a black oxide finish. When you want the best look no further than Manley Chromoly Swedged End Pushrods. These pushrods are stock LS length (except LS7) and can be used in any application requiring a pushrod length of 7.400".
Sold as a set of 8.
Purchase two sets to complete an a engine.
Specifications
| Brand: | Manley Performance Products | |
| Part Numbers: | MAN-25822-8 | |
| Other Part Numbers: | 25822-8 | |
| Part Type: | Valve Train Components | |
| For Use with Guideplates: | Yes | |
| Pushrod Tube Diameter: | 3/8" | |
| Pushrod Material: | Chromoly | |
| Top Tip Style: | Ball | |
| Bottom Tip Style: | Ball | |
| Intake Overall Length (in): | 7.400" | |
| Exhaust Overall Length (in) | 7.400" | |
| One-Piece Pushrod: | Yes | |
| Oiling: | Yes | |
| Tapered: | No | |
| Tip Attachment: | Formed | |
| Top Tip Diameter: | 3/8" | |
| Bottom Tip Diameter: | 3/8" | |
| Wall Thickness (in): | 0.080 in | |
| Heat-Treated: | Yes | |
| Quantity: | Sold as a set of 8 | |
| In Store Pickup: | Colton, CA, USA |
Application
These pushrods are stock LS length (except LS7) and can be used in any application requiring a pushrod length of 7.400".
Note: Selecting correct push rod length is vital in obtaining the proper geometry for valve train. The rocker should ride in the center of valve stem so it does not come off of stem as cam opens and closes. Push rod length will raise or lower rocker moving where it sits on valve stem. Camshaft, lifters, rockers and valves all play a part in determining what length of push rod is required. CBM offer`s a couple of tools to help check this length.
Part number CCA-7705, CCA-7702-1 and CCA-7703-1 will help with finding correct push rod length.
Warranty
Manley products, due to their intended use, are sold without warranty.
