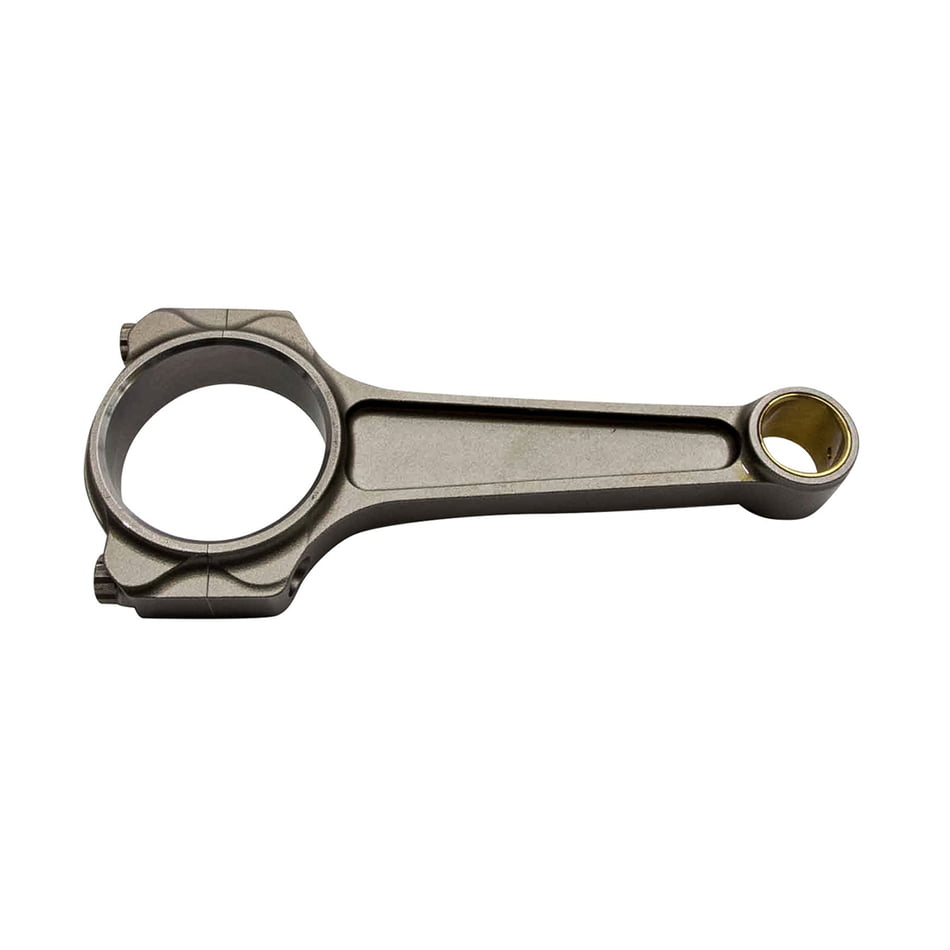

MANLEY FORD COYOTE 5.0L DOHC PRO SERIES STANDARD WEIGHT "I" BEAM RODS
$1,854.99
In Stock
Pre-Order
Sold out
Part #: MAN-14518-8
Couldn't load pickup availability
- Description
MANLEY FORD COYOTE 5.0L DOHC PRO SERIES STANDARD WEIGHT "I" BEAM RODS Product Description:
Overview
Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. The signature "Pro Series Standard Weight" design combines the appropriate weight and rugged strength for ultimate horsepower applications.
Each rod is shot peened after machining and magnafluxed. Bores are held to exacting tolerances. Bend and twist is tightly controlled. Cap fasteners are ARP 2000 alloy cap screws.
Heavier beam for forced induction applications.
Specifications
| Brand: | Manley Performance Products | |
| Part Numbers: | MAN-14518-8 | |
| Other Part Number: | 14518-8 | |
| Part Type: | Pistons, Rings & Rods | |
| Connecting Rod Length Center to Center (in): | 5.933" | |
| Connecting Rod Beam Style: | I Beam | |
| Connecting Rod Material: | Forged 4340 steel | |
| Connecting Rod Finish: | Shot-peened | |
| Wrist Pin Style: | Floating | |
| Clearanced for Stroker: | No | |
| Cap Retention Style: | Cap screw | |
| Connecting Rod Bolt Brand: | ARP | |
| Connecting Rod Bolt Diameter: | 7/16" | |
| Connecting Rod Bolt Material: | ARP 2000 Alloy | |
| Fastener Yield Strength (psi): | 220,000 | |
| Connecting Rod Bolt Head Style: | 12-point | |
| Approximate Connecting Rod Weight (g): | 685 | |
| Big End Bore Diameter (in): | 2.2390" | |
| Pin End Bore Diameter: | 0.867" | |
| Advertised Horsepower Rating: | 1,200 | |
| Advertised RPM Rating: | 8500 | |
| Weight Matched Set: | Yes | |
| Remanufactured: | No | |
| Magnafluxed: | Yes | |

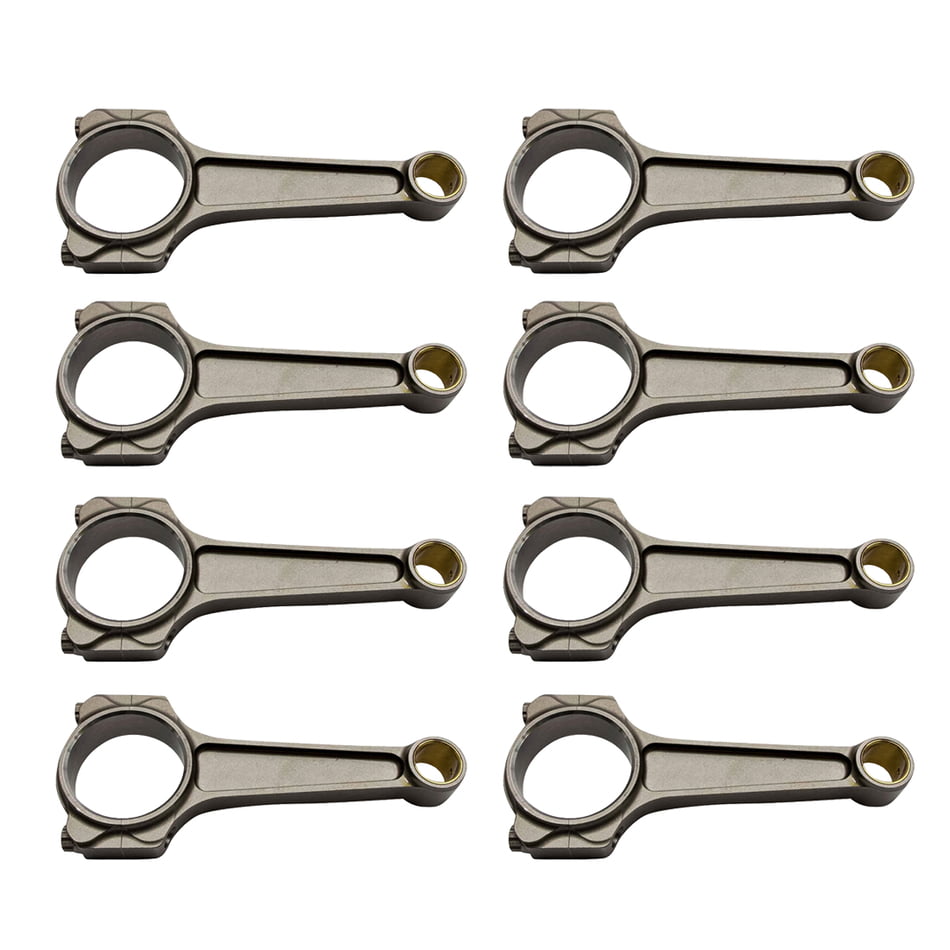

| Quantity: | Sold as a set of 8 | |
| In Store Pickup: | Colton, CA, USA |
