RIGID CHASE BAR WITH SURFACE MOUNTS Product Description:
Overview
RIGID introduces the world's most advanced Rear Facing Chase Light Bar. The Chase Bar is a rear facing LED light that adds safety and functionality to any UTV, rail, buggy, Jeep, or other off-road vehicle by combining running, brake, reverse, turn signal, and more into a single compact package. Pre-programmed features include strobe, scroll, flash, and all on and can be fully customized to any vehicle trigger. This light bar is 28 inches long and has programmable triggers: running and three auxiliary triggers. The user can program each trigger by choosing from 27 pre-programmed modes for a completely custom setup. The running and auxiliary triggers allow for the selection of one of the pre-programmed modes or to customize your own for an astounding 300,000 plus possible configurations. Compliant with multiple race series that require strobing blue, amber, green and red. The RIGID Chase light bar is available with either adjustable tube mounts to fit 1.5 to 2 in. roll cages or 15 degree horizontal mounting brackets. Each kit Includes a 13 in. lead for custom wiring; professional installation is strongly recommended. This fully customizable Chase LED light bar from RIGID is packed with features and makes it easier than ever to Own The Night.
Features and Benefits
- 27 Pre-Programmed Modes
- User Defined Programming And Usage
- Programmable Running And 3 Auxiliary Triggers
- Supports Running/Brake/Reverse And Turn Signal
- LED Colors: Red/White/Blue/Green And Amber
- Over 300000 Possible Configurations
- Sleek Look - No Exterior Hardware
- 9-16VDC
- Pressure Equalizing Vent
- Operating Temperature -40F To 158F/ Integrated Thermal Management
- SAE J575 Compliant - Shock/Vibration
- IP68 Compliant - Dust/Water Ingress
Specifications
Product Name: Chase Bar with Surface Mounts
SKU: 901802
UPC: 815711017540
Size: 28"
Light Shape: BAR

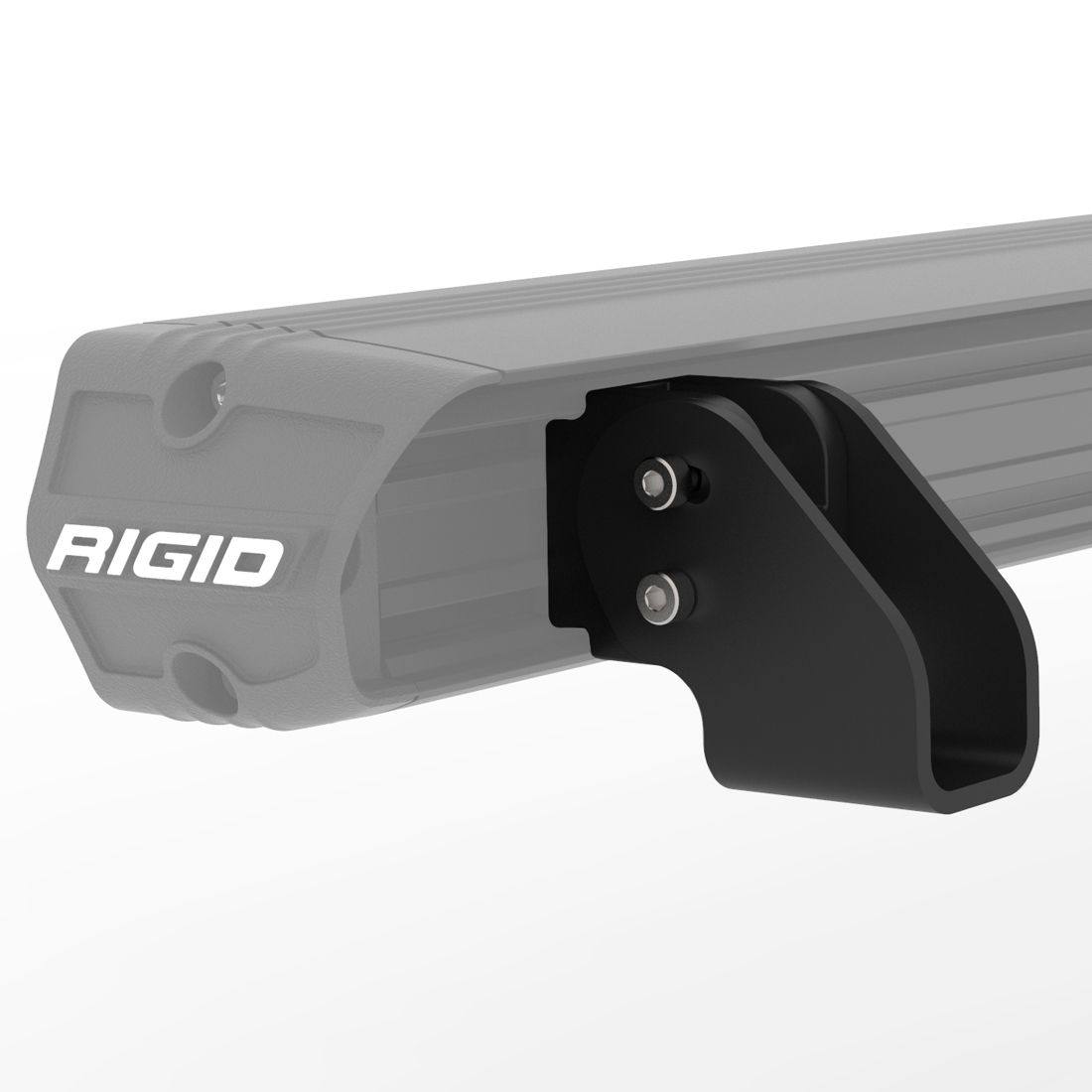

Mount Type: SURFACE MOUNT
Beam Category: REAR
Voltage Range: 9V - 36V
Current Draw at 14V (a): 1.79
Raw Lumens: 2010
Watts: 25.1
Lux @10m: cannot measure
Beam Distance @ 1 LUX: cannot measure
Beam Distance @ .25 LUX: cannot measure
Peak Beam Intensity(cd): cannot measure
Horizontal Beam Angle: cannot measure
Vertical Beam Angle: cannot measure
Warranty
Limited Lifetime Warranty
