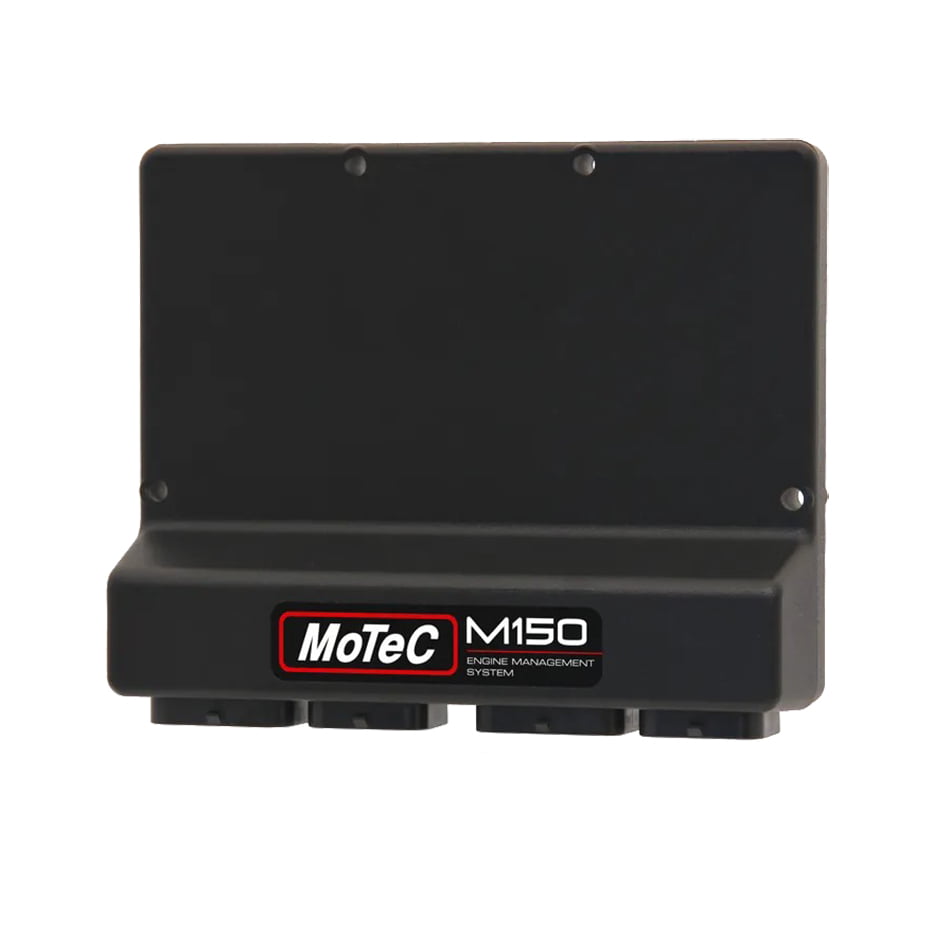

MoTeC M150 ECU

Advances in technology have increased the demands on a vehicle’s components, especially the ECU. This demand has reached the point where a single firmware to ECU configuration cannot meet the market’s ECU requirements (even with increased capacity and processor speed).

The M1 series was conceived by MoTeC to overcome this one-to-one, firmware to ECU limitation, by designing a system where operational efficiency, advanced features and flexibility are its primary objectives. At its core, M1 provides the ability to develop a suite of flexible and tailored solutions (packages), making it ideal for any application (however complex) and category management.

Features:

• Latest generation high performance processor.
• Large logging memory, fast Ethernet downloads.
• Compact and lightweight in robust magnesium enclosures.
• Supports direct injection and port injection applications.
• Supports advanced logging features including Pro Analysis (i2 Pro).
• Advanced security system, incorporating an anti-tampering microprocessor.
• Access log-in levels for multiple users.
• Suitable for modern engines with DBW, Cam Control and multiple CAN buses.
• Advanced logging features, high speed, multiple logs (with access logins).
• I/O expansion using E816, E888 expanders.
• Flexible tuning software.
• Programmable digital input system for Ref/Sync, wheel speeds etc.
• Programmable trigger levels, diagnostics.
• All Low Side and Half Bridge outputs have PWM capability.



SPECIFICATIONS

Injector:

• 12 x Peak & Hold Injector Outputs.

Ignition:

• 12 x Low Side Ignition Outputs.

Auxiliary Outputs:

• 6 x Low Side Output.
• 10 x Half Bridge Output.

Inputs:

• 12 x Universal Digital Input.
• 4 x Digital Input.
• 17 x Analog Voltage Input.
• 6 x Analog Temperature Input.
• 4 x Knock Sensor.
• 2 x Lambda (narrowband).

Data:

• 3 x CAN Bus.
• 1 x RS232.
• 1 x LIN.
• 250MB Logging Memory.

Dimensions & Connectors:

• Size 162 x 127 x 39 mm.
• Weight 450g.
• Connectors 2 x 34 and 2 x 26 pin plastic connectors.

PACKAGES

GPA Overview:

• Pit Speed Limiting.
• Switchable Fuel.
• Ignition and Boost Trimming.
• Knock Control.
• Intercooler Sprays.
• DBW.
• CAM Control.

GPR Overview:

• Traction Control.
• Gear Change Ignition Cut.
• Anti-Lag.
• Launch Control.
• Includes all GPA features.

GPRP Overview:

• Paddle Shifter Control.
• Includes all GPA and GPR features.

UPGRADES

Logging Level 2:

• 1 Log Set.
• 200 Hz Max Sample Rate.
• 200 channels.

Logging Level 3:

• 8 Log Sets.
• 1000 Hz Max Sample Rate.
• 2000 channels.

i2 Pro Analysis:

• Provides access to advanced i2 Pro data analysis software with multiple graph overlays, X-Y plots, advanced maths functions, synchronized video (manual alignment), and flexible layouts to accommodate virtually any user preference. Requires the Data Logging upgrade.

MoTeC prides itself on quality manufacturing and high reliability, and every effort is taken to ensure each product leaving the company meets the highest standards. To support this commitment, MoTeC provides a two year warranty on all MoTeC manufactured items.
