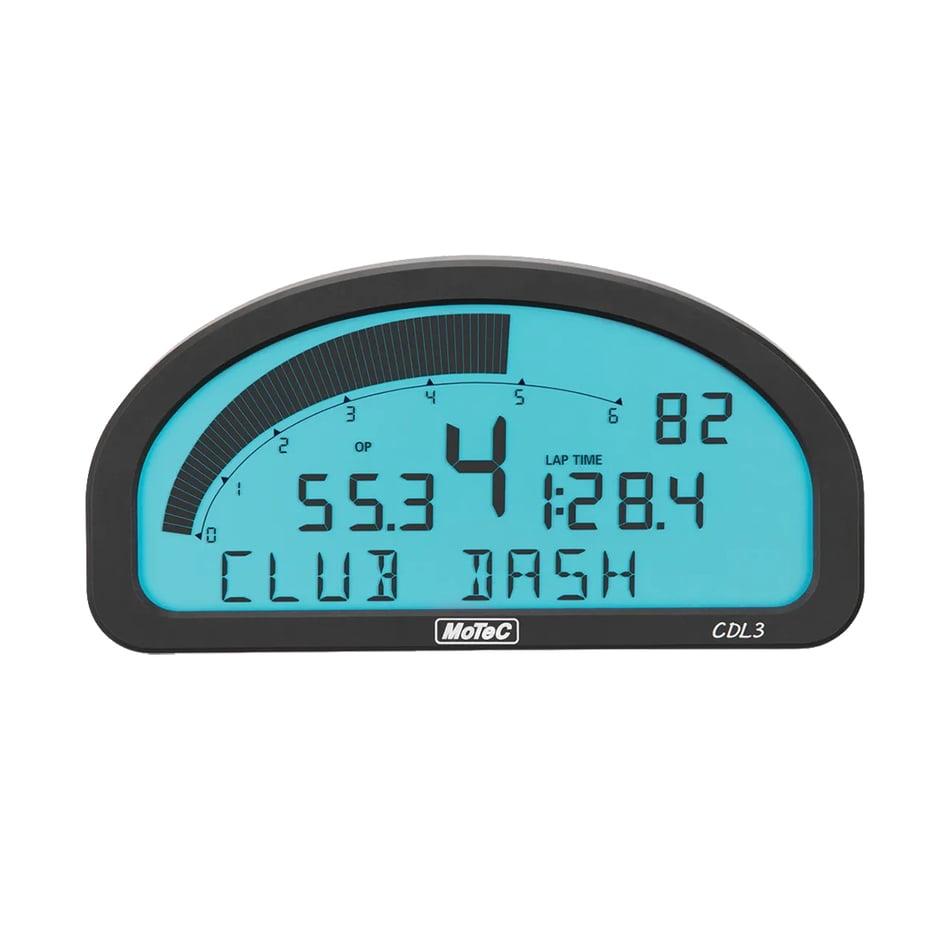

MoTeC CDL3 DISPLAY LOGGER

$1,710.00 In Stock Pre-Order Sold out Part #: MTC-18022

Description

MoTeC CDL3 DISPLAY LOGGER Product Description:

Overview

The CDL3 now comes with 8MB logging and 12 Inputs/Outputs included at an unbeatable new price. It offers the same construction and advanced technology as the top of the line ADL3, with a package of features tailored to entry level motorsport requirements. The screen layout is fully configurable to display a multitude of data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

Features:

All-in-one display, logger and controller.
Suitable for bikes, cars, marine and industrial applications.
Compact, durable and reliable unit.
Supports Wideband Lambda from MoTeC PLMs or LTCs.
Easily integrates with MoTeC CAN-based expanders, GPS, shift lights and ECUs.

SPECIFICATIONS

Display:

70 segment bar graph.
13 digit alphanumeric text bar.
48 user-defined, scrollable message lines with programmable overrides.
3 programmable ‘pages’ for Practice, Warm-Up and Race.
Adjustable backlight.

Internal Sensors:

3-axis G sensor.
Dash temperature sensor.
Sensor supply voltage.
Battery voltage.

Buttons and Lights:

Alarm acknowledge button.
Mode, page and scroll line button.
2 stage brightness control input.
SLM / SLM-C for shift and warning light.

Communications:

2 x configurable CAN or RS232 bus with individually programmable CAN bus speeds.
1 dedicated RS232.

Physical:

Dimensions 180 x 91 x 18 mm excluding connector.
Weight 385 g.
1 x 34 pin AMP connector.

Inputs:

4 x Analogue voltage high resolution inputs.
2 x Analogue temperature inputs.
2 x Digital inputs.
3 x Speed inputs with voltage measuring capability.
Compatible with E888 expander (8 Thermocouples only).

Outputs:

4 x PWM, switched or digital outputs.

Logging:

8 MB logging memory.
Logging rates up to 500 samples per second.
Fast Ethernet download.

Compatibility:

MoTeC ECUs: M4, M48, M8, M84, M400, M600, M800 and M880.
MoTeC Accessories: MDD, E888, SLM, PLM, LTC, BR2, PDM, GPS, VCS etc.
Many non-MoTeC devices.

Warranty

MoTeC prides itself on quality manufacturing and high reliability, and every effort is taken to ensure each product leaving the company meets the highest standards. To support this commitment, MoTeC provides a two year warranty on all MoTeC manufactured items.
