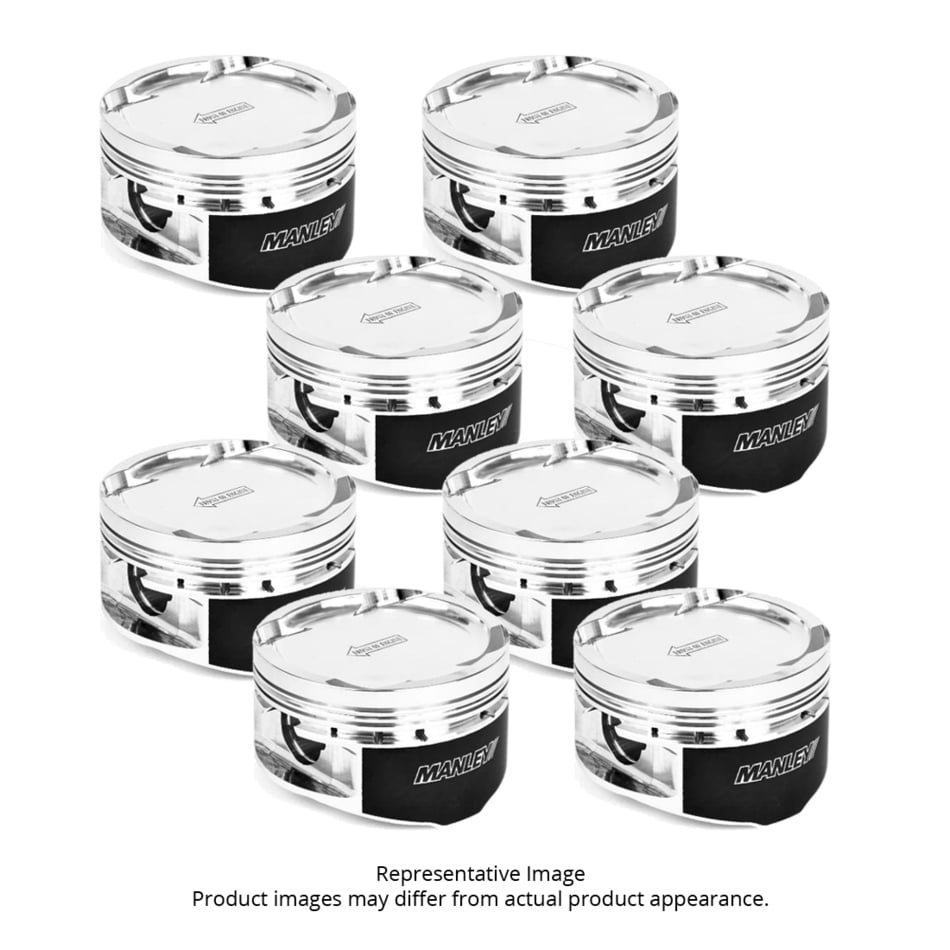

MANLEY PLATINUM -2.5CC FLAT TOP PISTON SET FORD 5.0L DOHC 3.650" STROKE 3.700" BORE

$866.78 In Stock Pre-Order Sold out Part #: MAN-598470C-8

Description

MANLEY PLATINUM -2.5CC FLAT TOP PISTON SET FORD 5.0L DOHC 3.650" STROKE 3.700" BORE Product Description:

Overview

The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance and are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Perfect ring groove to skirt squareness is achieved through a unique "one fixturing" manufacturing method.

Manley utilizes a proven offset wrist pin design and moly coated skirts for ultimate performance. Roundwire locks, tool steel wrist pins and pressure balance grooves are included with every set at no additional charge.

Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.

Note: Compression ratios are calculated at 0.00" deck clearance, a 9.240" deck height, and a .042" thick compressed head gasket.

Specifications

Brand:		Manley Performance Products
Part Numbers:		MAN-598470C-8, MAN-598470CE-8
Other Part Number:		598470C-8, 598470CE-8
Part Type:		Pistons
Bore (in):		3.700"
Stroke (in):		3.650"
Rod Length: (in):		5.933"
Piston Style:		Flat Top
Piston Material:		Forged Aluminum.
Compression Distance (in):		1.165"
Piston Head Volume (cc):		-2.5cc
Wrist Pin Style:		Press Fit or Floating.
Wrist Pin Included:		Yes
Pin Diameter (in):		0.866"
Piston Ring Thickness:		1.20mm x 1.20mm x 3.00mm
Piston Rings Included:		No
Piston Weight (Gms):		TBA
Coated Skirt:		Yes
Compression Ratio:		10.0:1
Quantity:		Sold as a set of 8.
In Store Pickup:		Colton, CA, USA
