CORE RACING PISTION SET BY JE PISTONS +2.56CC DOME CHEVY LS7 4.100 STROKE 4.125 BORE 1.065 CD

$999.99 In Stock Pre-Order Sold out Part #: CORE-351082

Description

CORE Performance RACING PISTION SET BY JE PISTONS +2.56CC DOME CHEVY LS7 4.100 STROKE 4.125 BORE 1.065 CD Product Description:

Overview

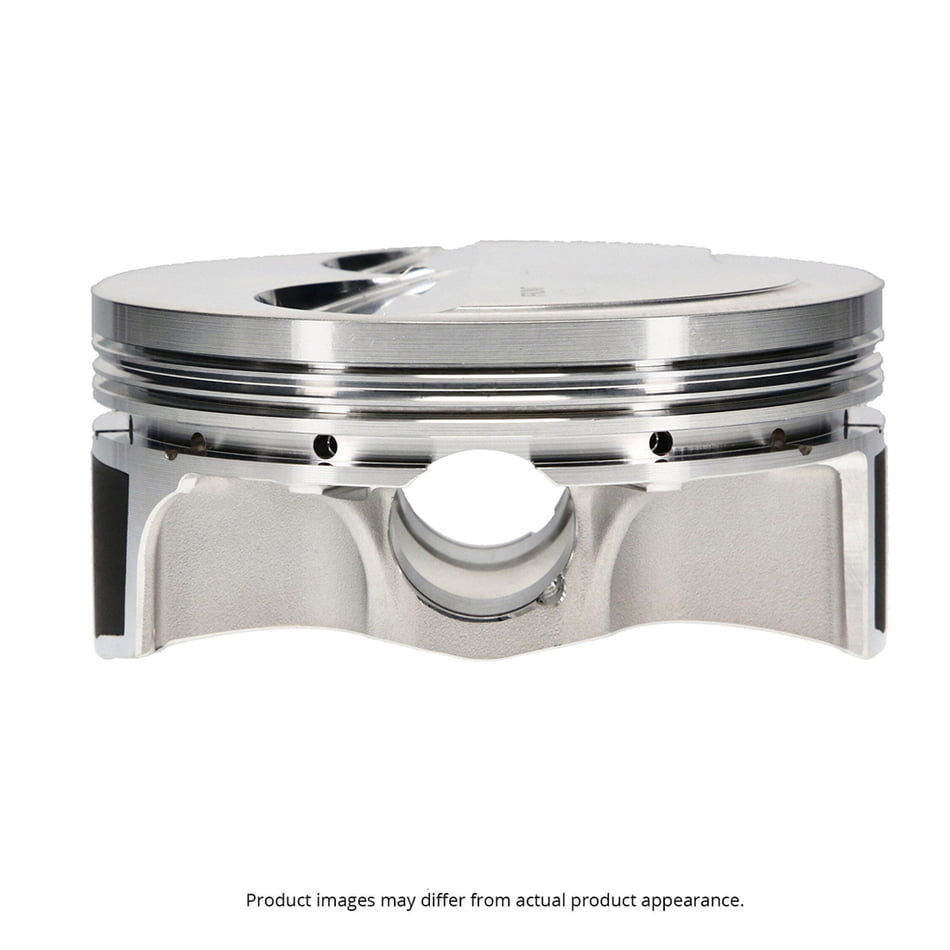

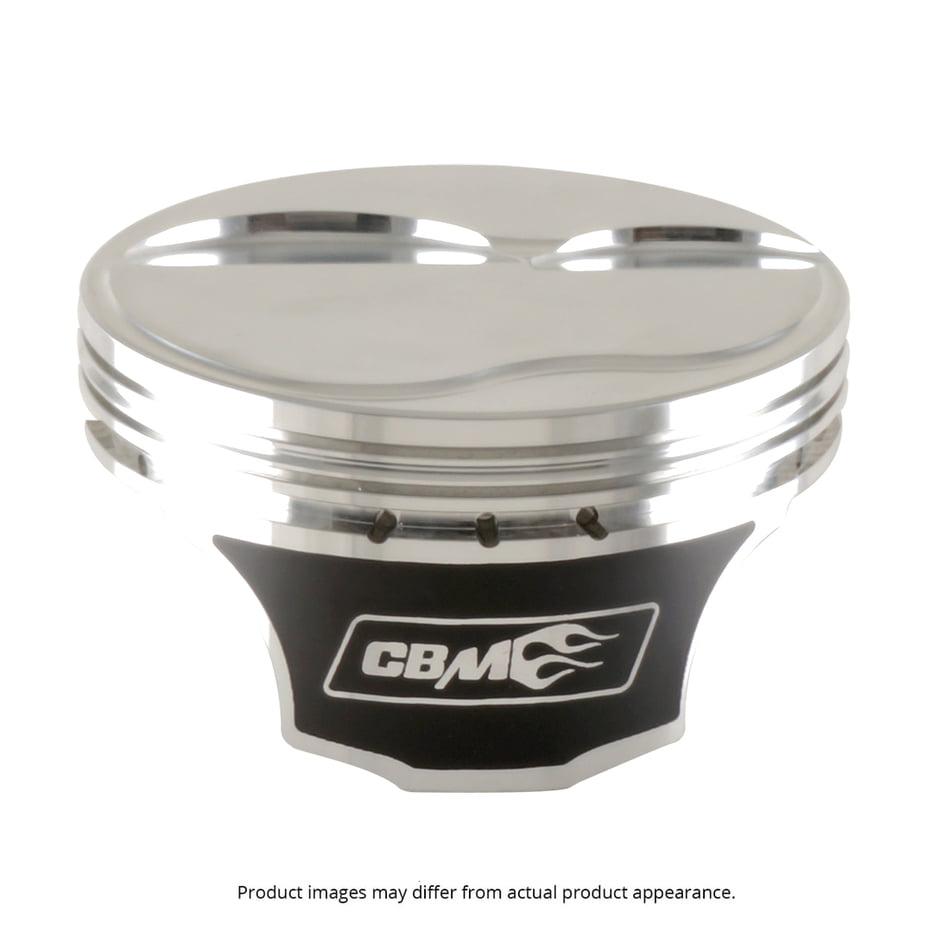

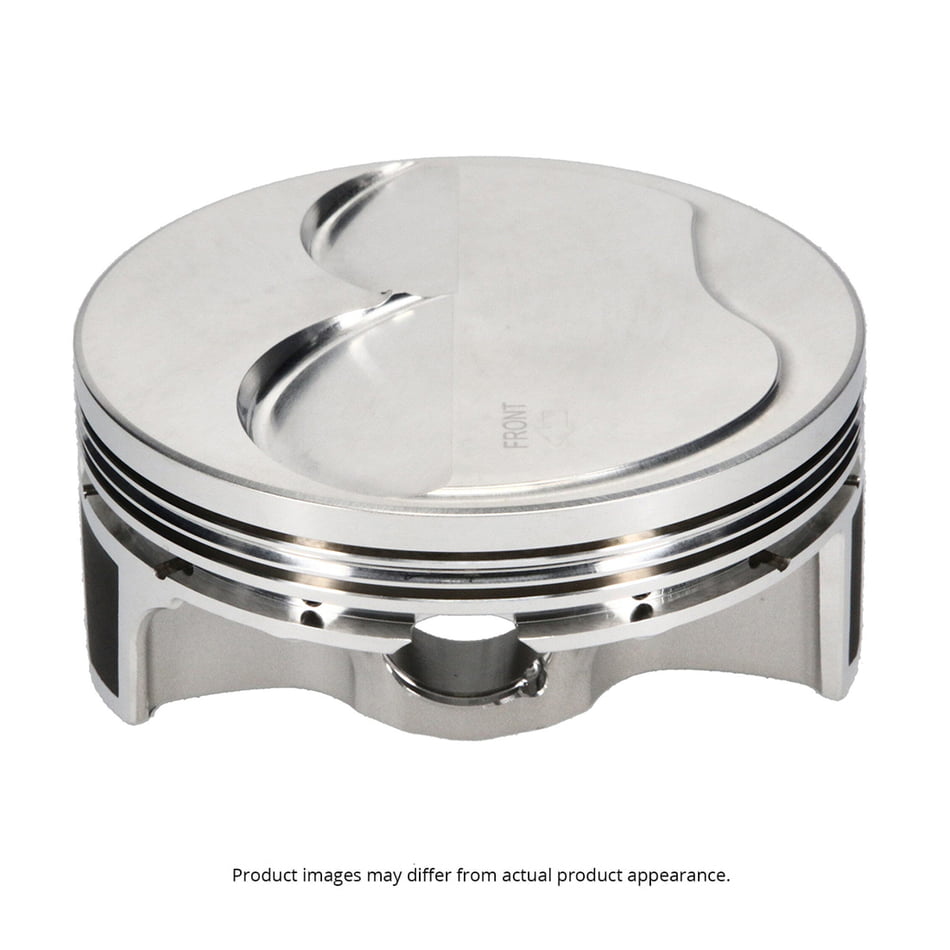

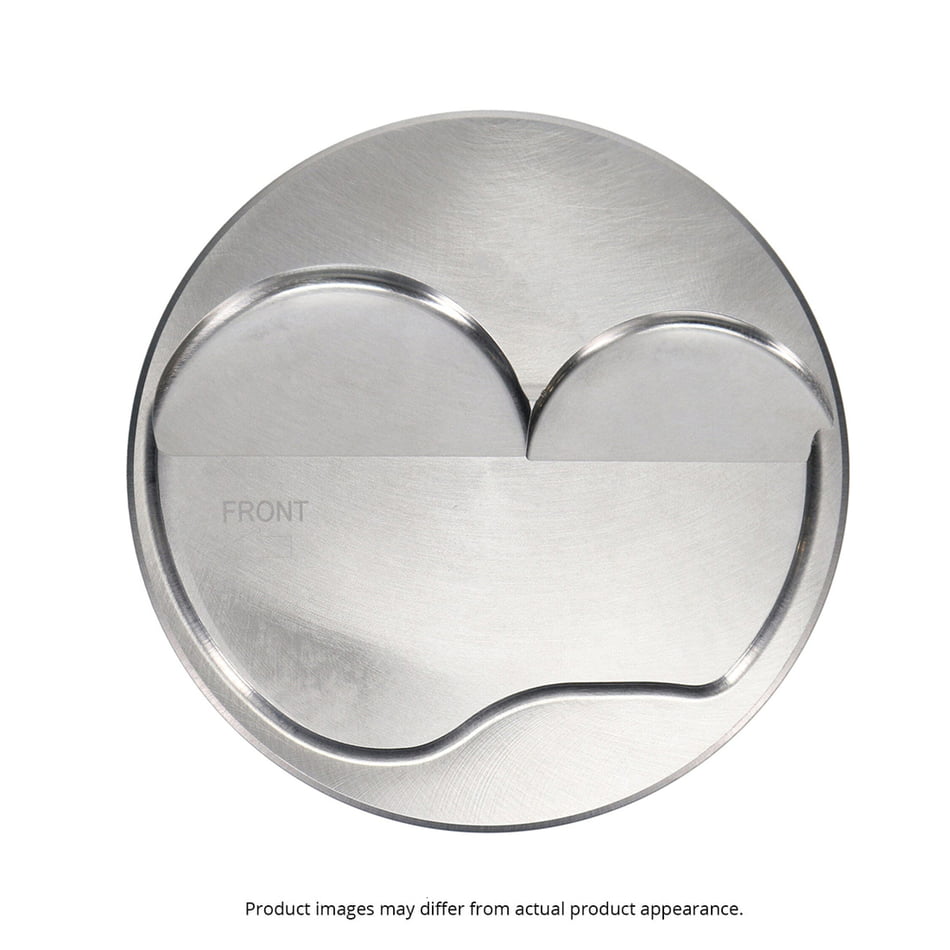

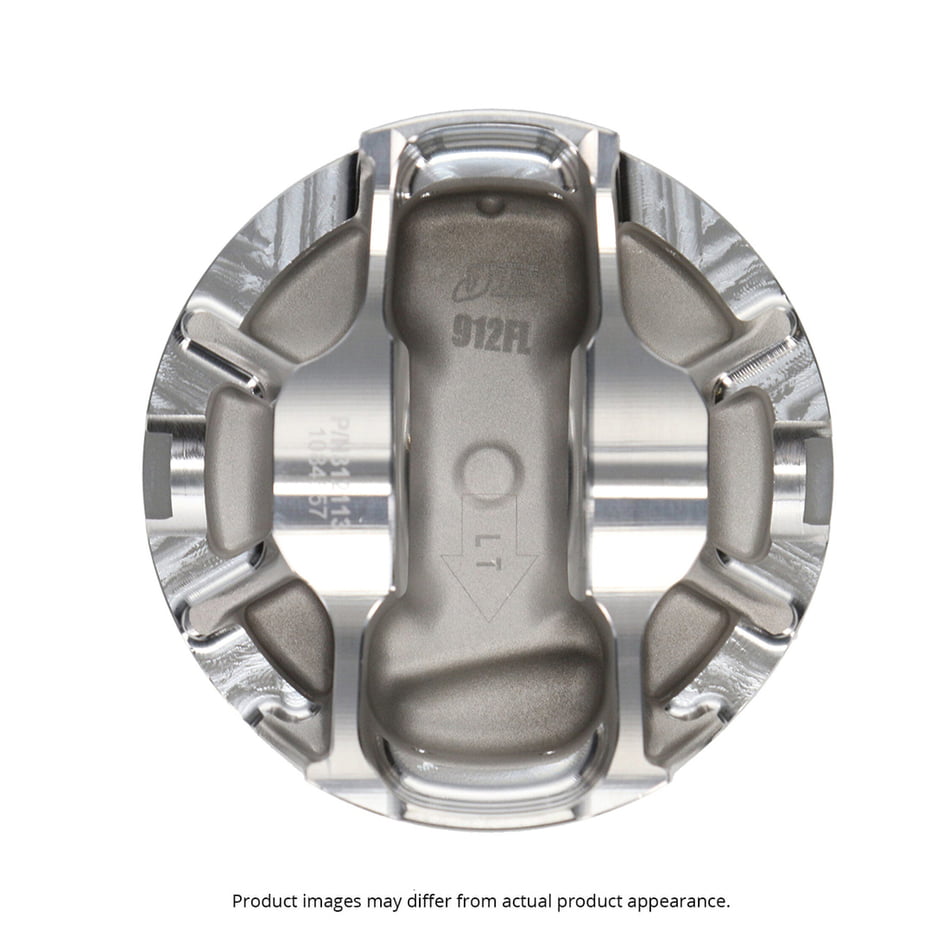

CORE Racing pistons are manufactured by JE Pistons to CORE Performance exact specifications right here in the USA. This asymmetrical FSR (Forged Side Relief) piston incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side.

Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable for your LS engine.

Note: For use with 12° cylinder head only.

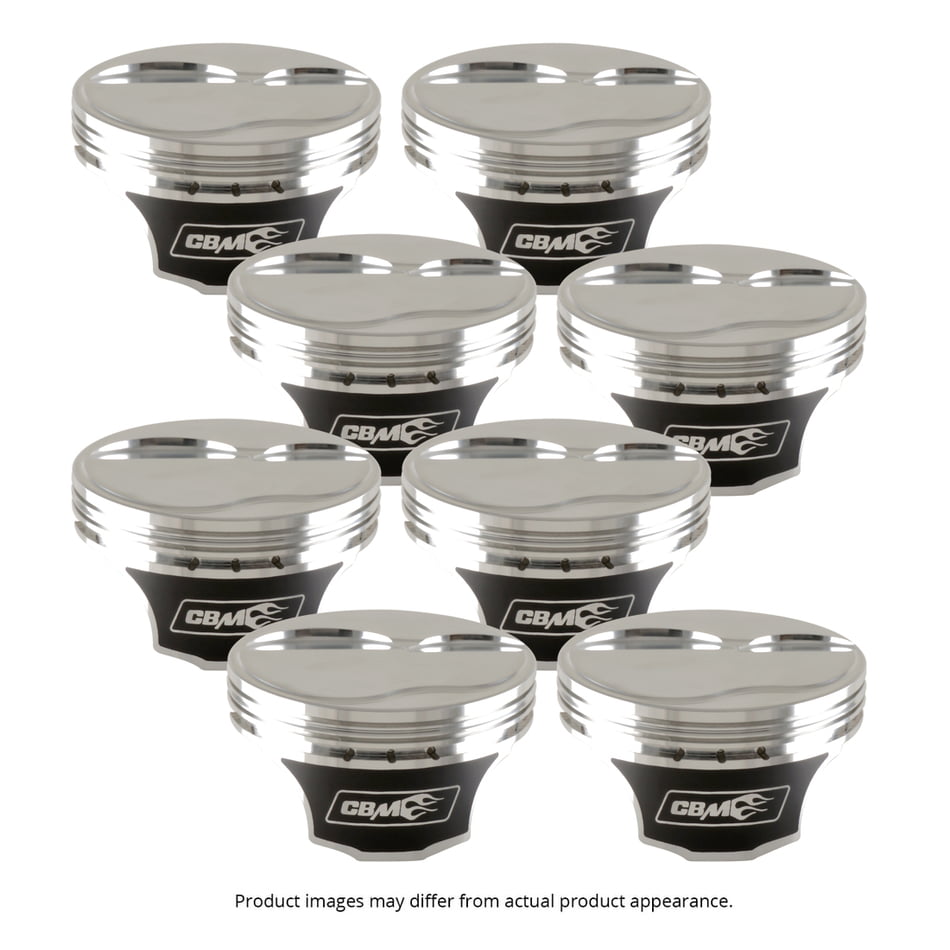

Set of 8.

Specifications

Brand:		JE Pistons
Part Numbers:		351082
Other Part Number:		CORE-351082
Part Type:		Pistons
Bore (in):		4.125"
Stroke (in):		4.100"
Rod Length (in):		6.125"
Piston Style:		Dome
Piston Material:		Forged Aluminum.
Compression Distance (in):		1.065"
Piston Head Volume (cc):		+2.56cc
Wrist Pin Style:		Floating.
Wrist Pin Included:		Yes
Pin Diameter (in):		0.927"
Piston Ring Thickness (mm):		1.50mm x 1.50mm x 3.00mm
Piston Rings Included:		No
Piston Weight (Gms):		430
Head Style:		LS7 12°
Oil Rail Support Included:		Yes
Quantity:		Sold as a set of 8.
In Store Pickup:		Colton, CA, USA

Application

GM LS7 style V8 engines.

Warranty

Due to the nature of performance applications, all JE Pistons products are sold without any expressed or implied warranty. JE Pistons shall not under any circumstances be liable for any special, incidental, or consequential damages, including, but not limited to, damages or loss of other property to the purchaser, which may arise and/or result from the sale, installation, or use of these parts.

JE Pistons reserves the right to make product improvements/changes without notice and without incurring liability, with respect to similar products previously manufactured.
