CORE GM LS STYLE BILLET OIL PAN UNION FITTING ADAPTER

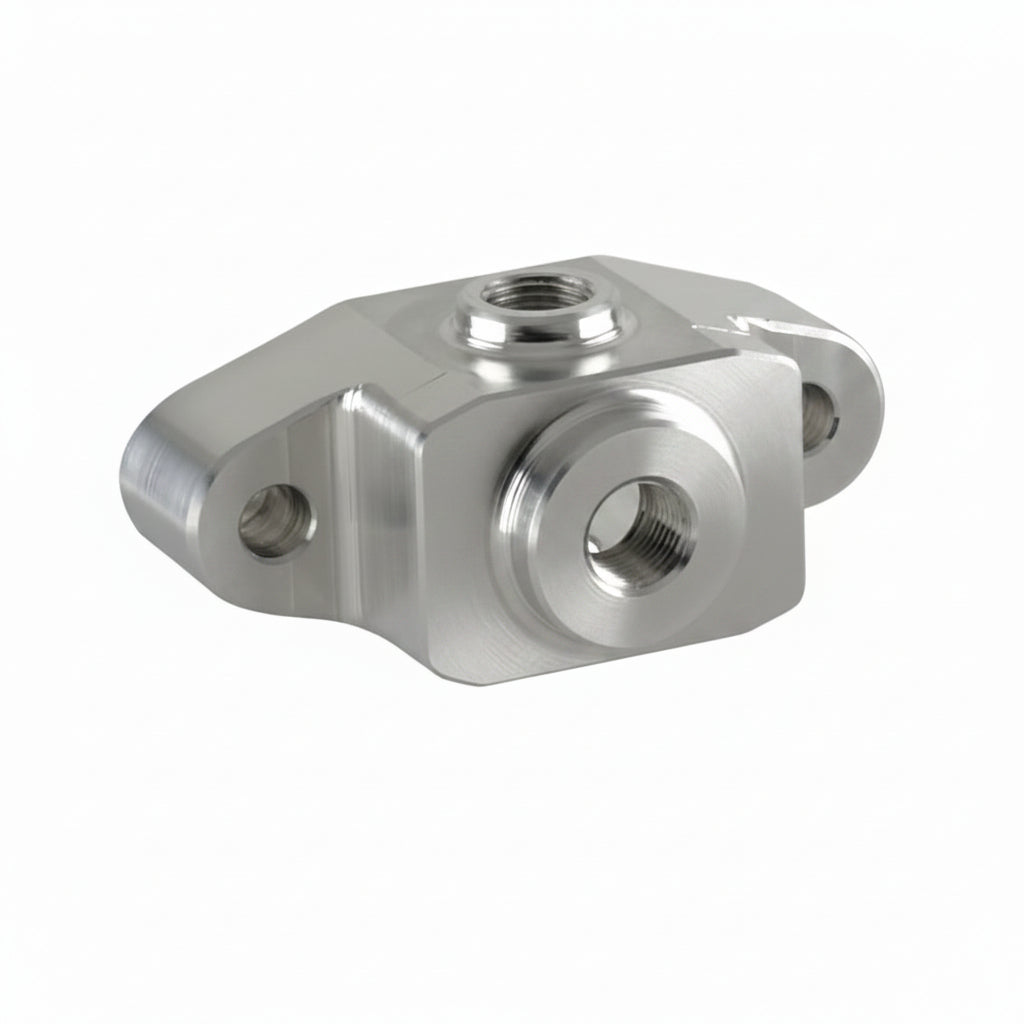

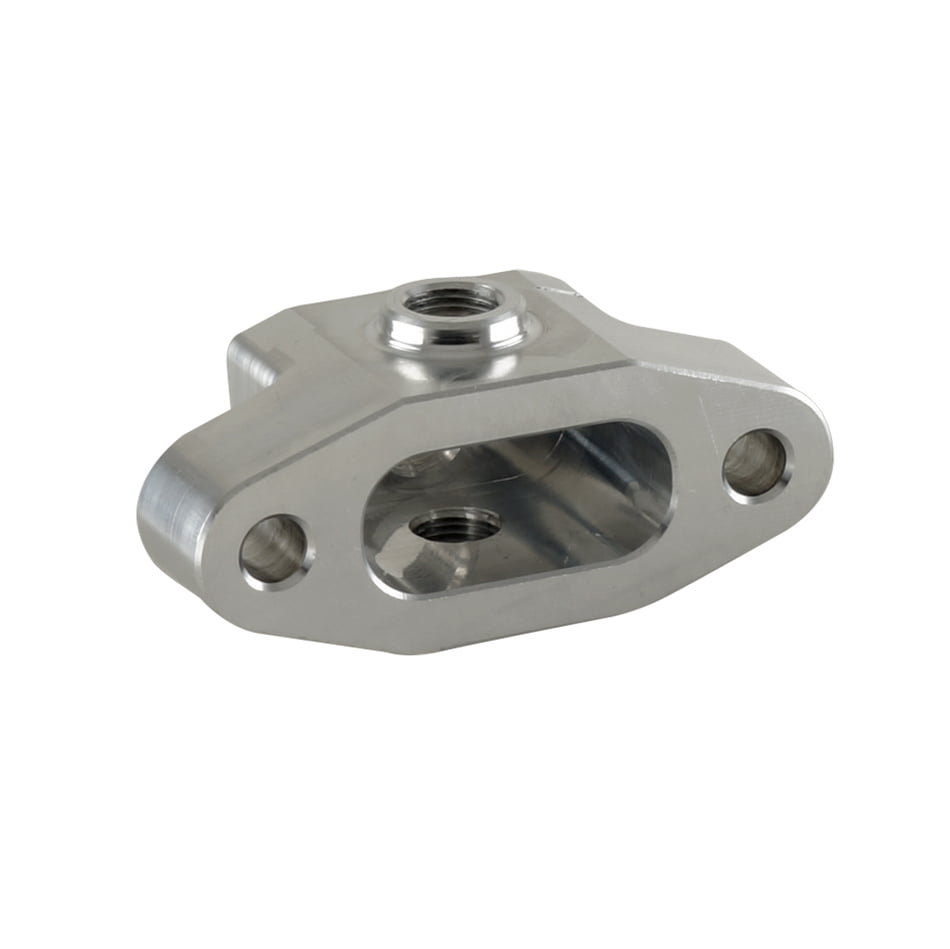

Custom oil pan union adapters for all GM LS style engines (LS1, LS2, LS3, LS6, LS7 wet sump, LSX). The adapters bolt in place of the factory oil pan adapter directly above the oil filter. The center can be used for a temperature sensor or plugged if not needed. The union can be used for most things that require an oil feed for ex. oil pressure gauge, turbo feed, warning light and more.

These adapters come in two configurations, (CORE-10819) outlets three holes, the side two and middle are tapped to 1/8" pipe fitting, (CORE-10820) outlets three holes, the side two are tapped to 1/8" pipe fitting and the middle is tapped to 12mm X 1.5", this configuration accommodates a factory sender and RACEPAK products.

All LS style engines (LS1, LS2, LS3, LS6, LS7 wet sump, LSX).

CORE Performance products are warranted to be free from defects in material and workmanship for a period of 90 days from the date of purchase. CORE Performance electronic components and products are warranted to be free from defects in material and workmanship for a period of 30 days from the date of purchase. If the any part does not meet the limited warranty criteria an RMA number will have to be initiated to set up an exchange or refund.

The part must be returned to CORE Performance with an RMA number assigned to it, and if it is in acceptable condition, CORE Performance will issue credit directly to the customer. In addition, CORE Performance limited warranty specifically does not apply to products which have been modified or altered in any way, subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair, or used in racing activities or competitive applications other than those recommended by CORE Performance. This warranty does not warrant and disclaims all liability for products used in racing activities and/or applications, other than those specifically recommended by CORE Performance.
