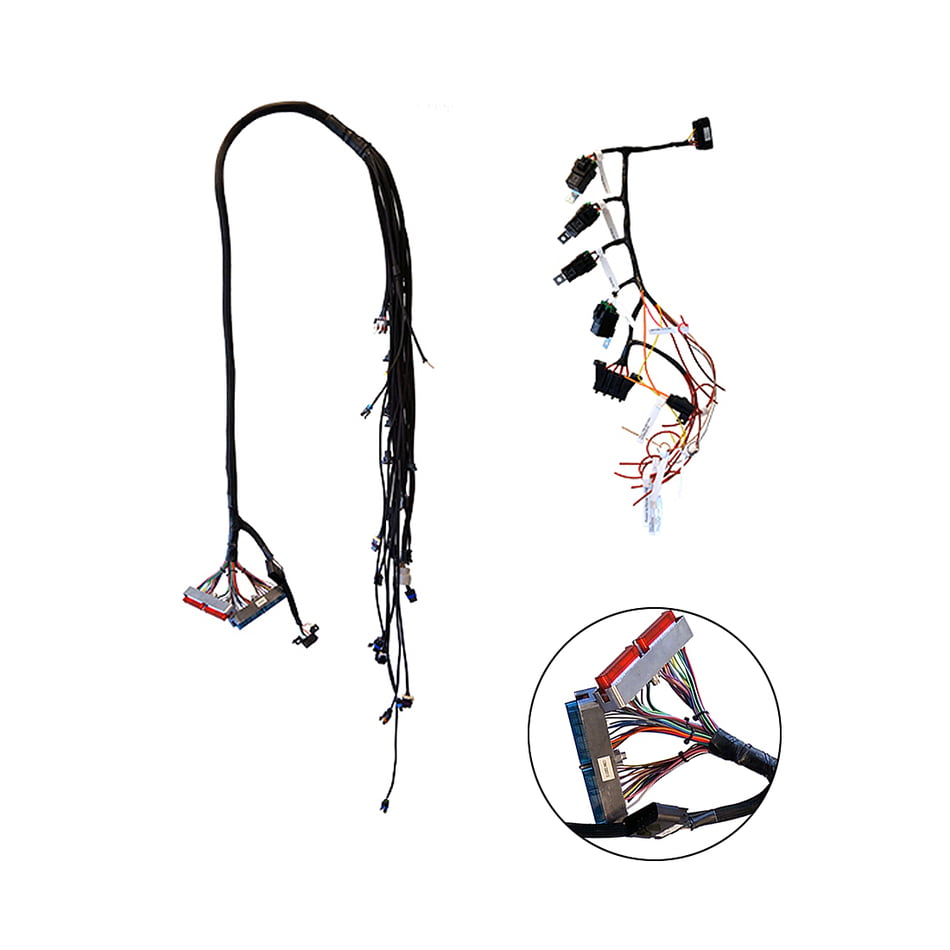

CORE LS SERIES STANDALONE WIRING HARNESS FOR GEN III LS USING A 24x RED/BLUE OEM ECU

This harness is for a Gen III LS engine using a 24x Red/Blue OEM ECU.

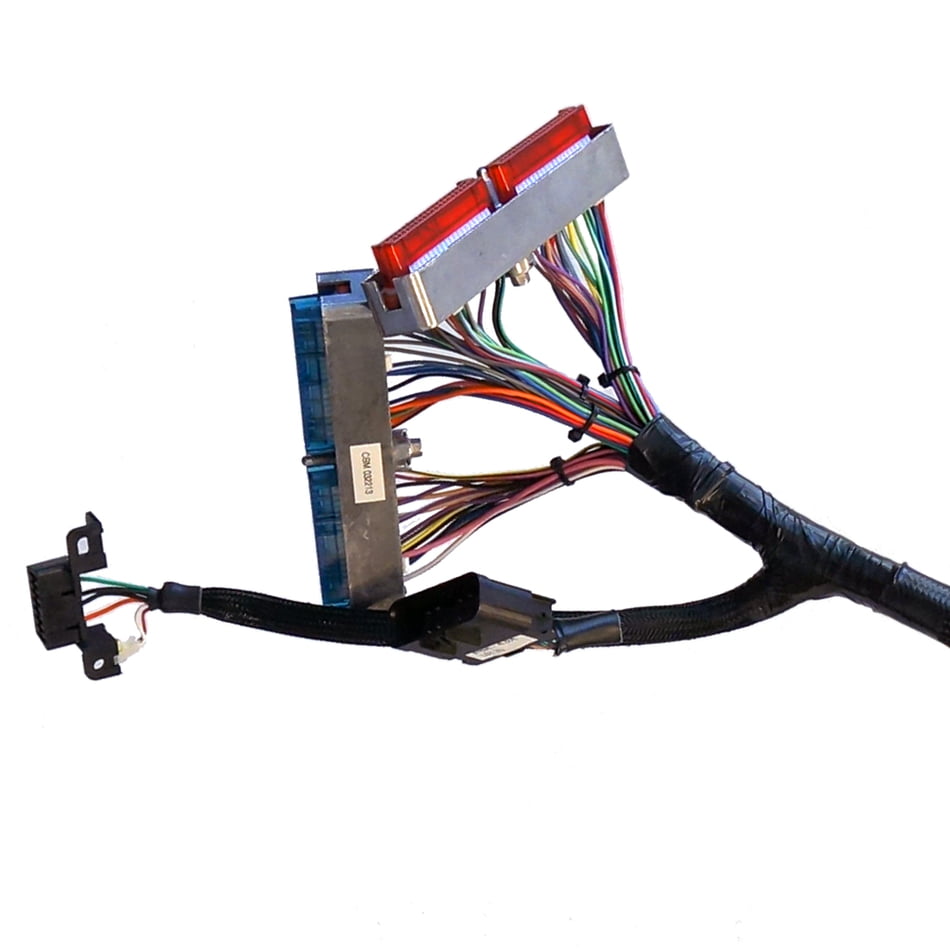

All CORE harnesses are completely plug and play with switched power, constant power and ground connections required. Harnesses are professionally constructed from brand new GM Delphi connectors and TXL (Polyethylene Cross Linked) High Temperature Wire to GM Specifications.

This is not a modified OEM harness. Every clip, connector and pin is brand new. All blunt cut wires are clearly labeled for easy installation. We use genuine weather pack Delphi plugs for every connection (not knock off China plugs). This is a show quality harness and uses all expandable sleeving, not cheap plastic split loom. All wires are correct AWG and have heat shrink at each end.

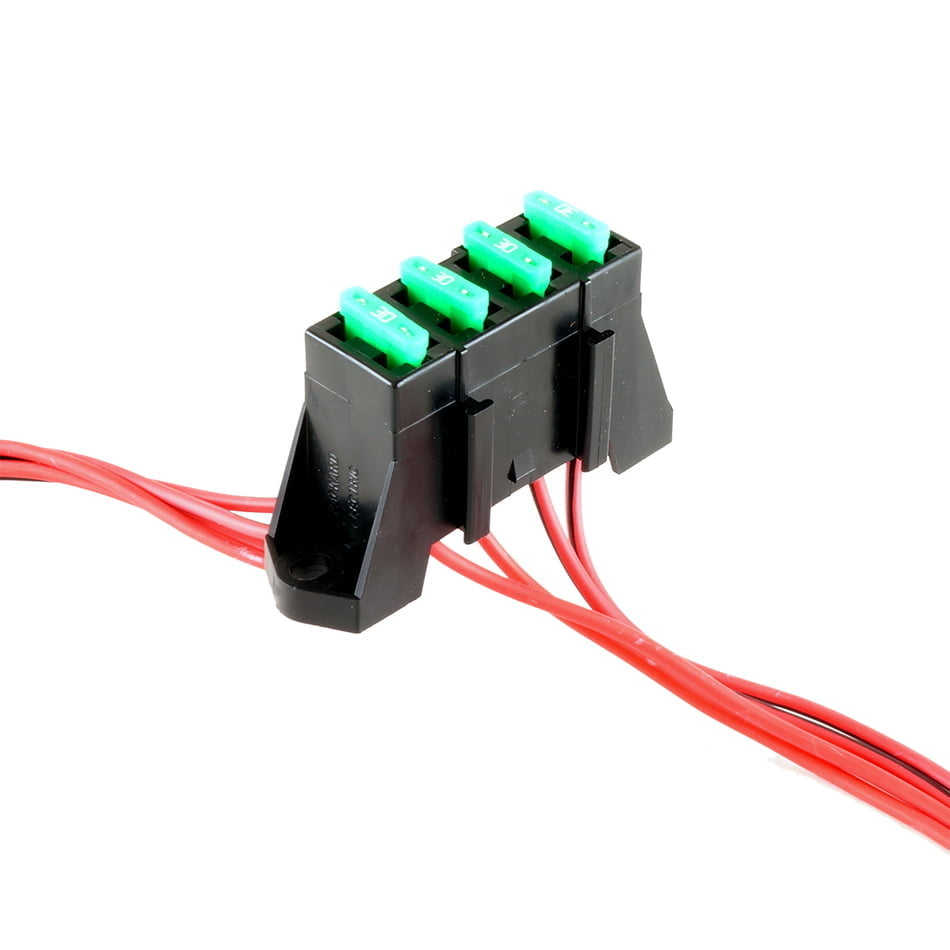

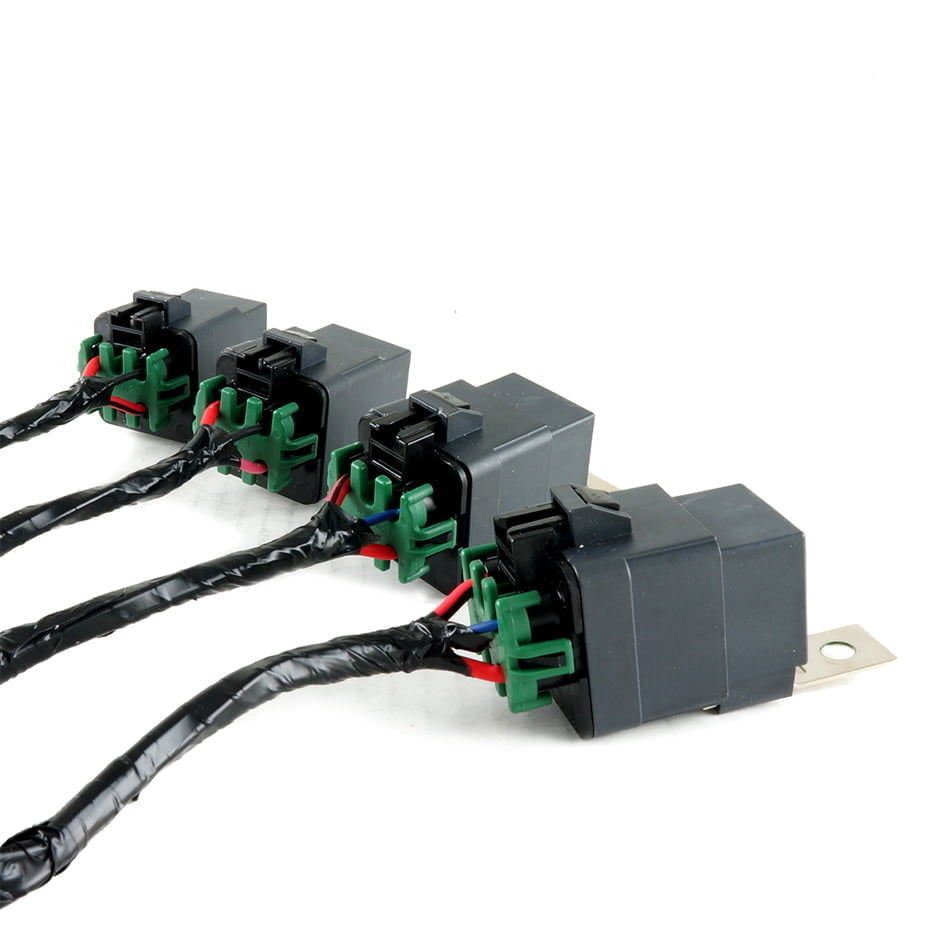

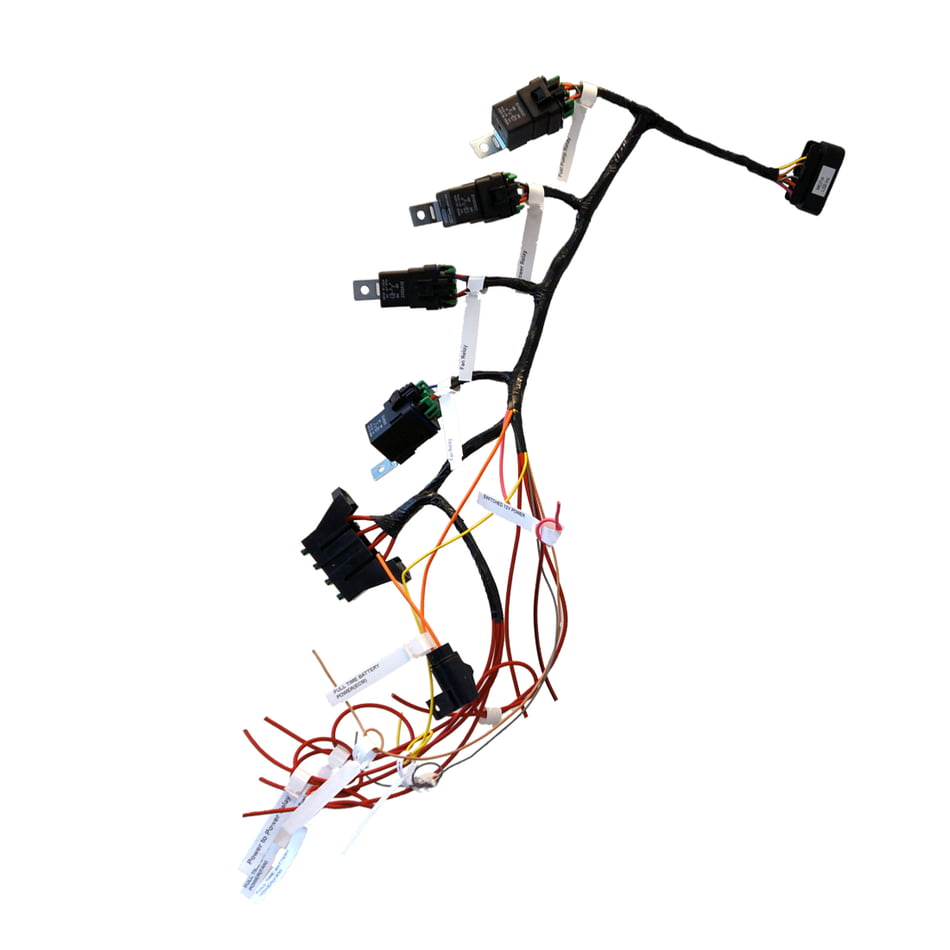

Every harness comes with a four foot lead to mount the computer under a seat, inside the passenger compartment, on a firewall, etc. The package comes with a water tight relay pack and fuse holder. All harness`s are 100% Quality Inspected prior to shipping.

Standalone Engine Wiring Harness for Gen III LS using a 24x Red/Blue OEM ECU features:

• Blunt cut wires clearly labeled.
• Genuine weather pack Delphi plugs.
• Expandable sleeving.
• All wires are correct AWG and have heat shrink at each end.
• Four foot lead.
• Labeled connectors.

Standalone Engine Wiring Harness for Gen III LS using a 24x Red/Blue OEM ECU includes:

• Standalone engine wiring harness.
• All engine sensor connectors.
• ALDL Connector.
• Fuel Pump Relay.
• Switched Power Ignition Relay.
• Tach Wiring.
• Complete Detailed Instructions.

ECU not included.

Note:

• Harnesses are for non-emissions equipped vehicles and do not include air pump or EGR provisions.
• To convert to a 58x crank trigger you will need the Lingenfelter Conversion Module found here.
• To convert to a 6 pin electronic throttle body you will need the Torque Rush X-Link Interface Module found here.

Warranty

CORE Performance products are warranted to be free from defects in material and workmanship for a period of 90 days from the date of purchase. CORE Performance electronic components and products are warranted to be free from defects in material and workmanship for a period of 30 days from the date of purchase. If the any part does not meet the limited warranty criteria an RMA number will have to be initiated to set up an exchange or refund.

The part must be returned to CORE Performance with an RMA number assigned to it, and if it is in acceptable condition, CORE Performance will issue credit directly to the customer. In addition, CORE Performance limited warranty specifically does not apply to products which have been modified or altered in any way, subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair, or used in racing activities or competitive applications other than those recommended by CORE Performance. This warranty does not warrant and disclaims all liability for products used in racing activities and/or applications, other than those specifically recommended by CORE Performance.
