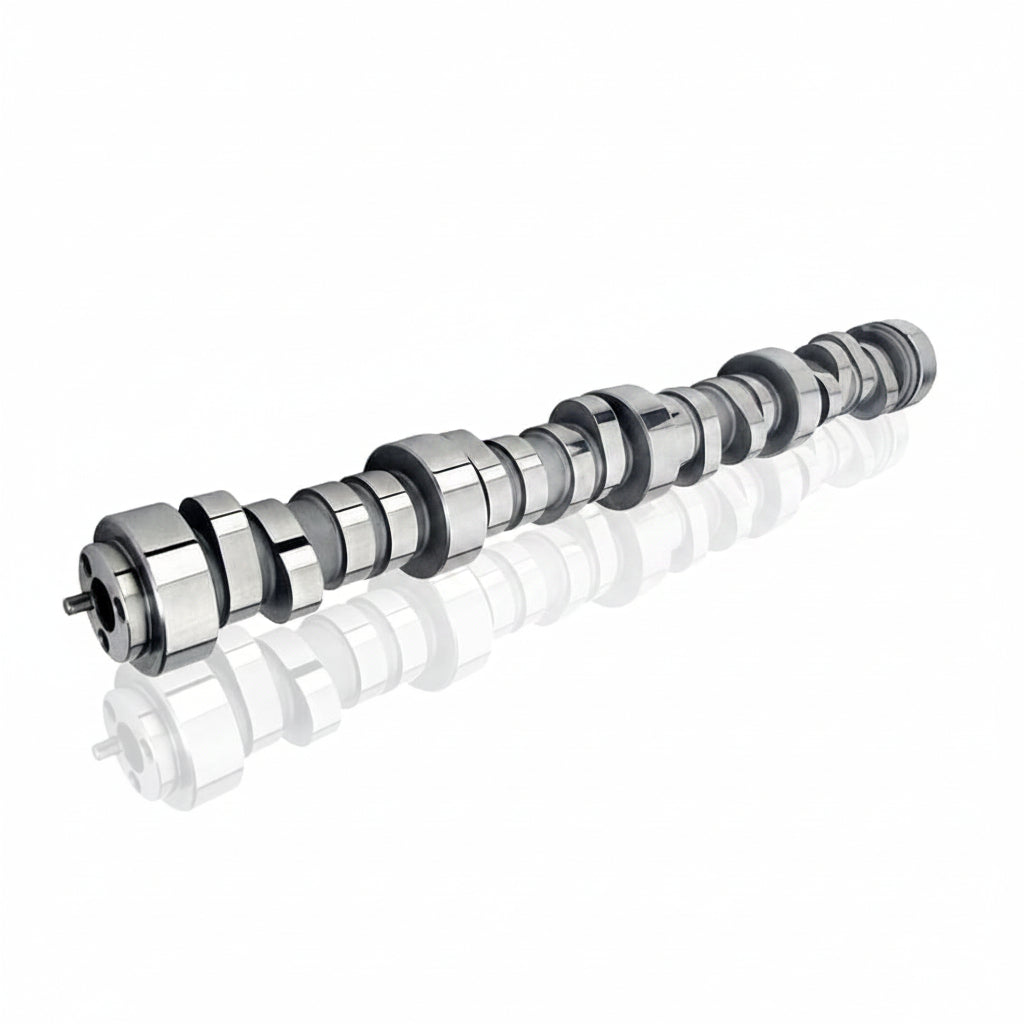

CORE LS 450-2 CAMSHAFT
Couldn't load pickup availability
- Description
CORE Performance LS 450-2 CAMSHAFT Product Description:
Overview
These camshafts are manufactured by COMP Cams® to CORE exact specifications right here in the USA. COMP Cams® defines future technology by investing in research and development programs to understand and utilize state-of-the-art computers, dynos, measuring equipment, materials, production processes, cycle testers and track testing.
GM LS1/LS3/LS6/LS7/LSX Style.
Camshaft description.
- Hydraulic roller.
- 3 Bolt gear attachment.
- 2,500-6,500 Operating RPM range.
- More HP and torque though out the power band.
- Street performance applicable.
- Max HP made when used with a 1400-2000 stall converter.
If you need help with choosing the right camshaft for your application please give us a call at 909.291.7550.
Specifications
| LS 450-2 Camshaft | |
| Grind Number: | CORE4502 |
| Engine Family: | GM LS GEN IV |
| RPM Operating Range: | 2,500-6,500 |
| Cam Type: | Hydraulic Roller |
| Lifter Style: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Usage: | Street |
| Valve Springs Required: | Yes |
| Camshaft Material: | Billet Steel |
| Advertised Intake Duration: | 276 |
| Advertised Exhaust Duration: | 284 |
| Intake Duration at .050 Inch Lift: | 221 |
| Exhaust Duration at .050 Inch Lift: | 229 |
| Intake Valve Lift: | 0.597 |
| Exhaust Valve Lift: | 0.604 |
| Lobe Separation: | 112.0 |
| Valve Timing @ 0.50 Lift: | ||
| Exhaust Close ATDC: -2.1 | Intake Open BTDC: 3.1 | |
| Exhaust Open BBDC: 51.1 | Intake Close ABDC: 37.9 | |
| @ 108.0: | ||
Application
Designed for use in LS engines.
