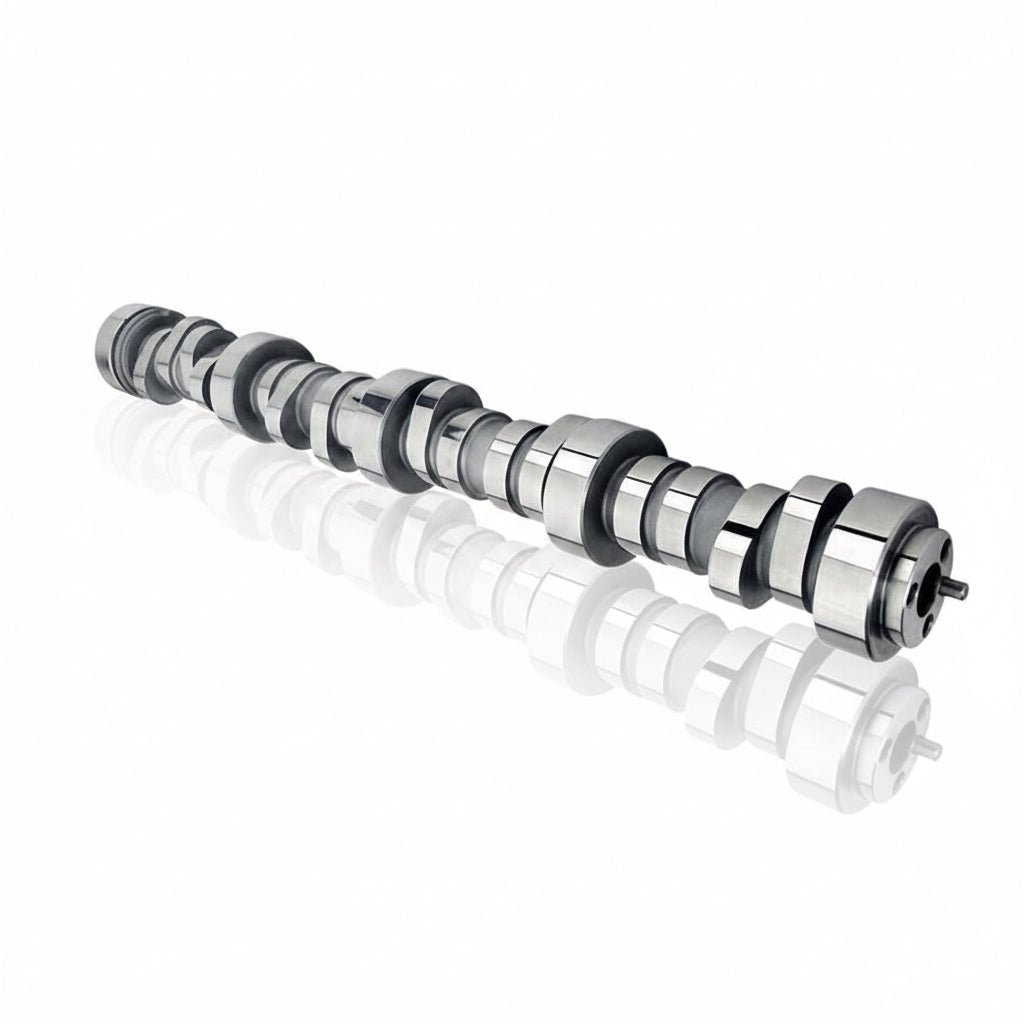

CORE LS 630-2 CAMSHAFT
Couldn't load pickup availability
- Description
CORE Performance LS 630-2 CAMSHAFT Product Description:
Overview
These camshafts are manufactured by COMP Cams® to CORE exact specifications right here in the USA. COMP Cams® defines future technology by investing in research and development programs to understand and utilize state-of-the-art computers, dynos, measuring equipment, materials, production processes, cycle testers and track testing.
GM LS3/LS7/LSX Style.
Camshaft description.
- Hydraulic roller.
- 3 Bolt gear attachment.
- 2,500-6,500 Operating RPM range.
- Designed for LS style engines over 400ci.
- Excellent street performance though out power band.
If you need help with choosing the right camshaft for your application please give us a call at 909.291.7550.
Specifications
| LS LS 630-2 Camshaft | |
| Grind Number: | CORE6302 |
| Engine Family: | GM LS GEN IV |
| RPM Operating Range: | 2,500-6,500 |
| Cam Type: | Hydraulic Roller |
| Lifter Style: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Usage: | Street |
| Valve Springs Required: | Yes |
| Camshaft Material: | Billet Steel |
| Advertised Intake Duration: | 284 |
| Advertised Exhaust Duration: | 296 |
| Intake Duration at .050 Inch Lift: | 229 |
| Exhaust Duration at .050 Inch Lift: | 241 |
| Intake Valve Lift: | 0.603 |
| Exhaust Valve Lift: | 0.613 |
| Lobe Separation: | 114.0 |
| Valve Timing @ 0.50 Lift: | ||
| Exhaust Close ATDC: 3 | Intake Open BTDC: 5 | |
| Exhaust Open BBDC: 59 | Intake Close ABDC: 45 | |
| @ 110.0: | ||
Application
Designed for LS style engines over 400ci.
Warranty
CORE Performance products are warranted to be free from defects in material and workmanship for a period of 90 days from the date of purchase. CORE Performance electronic components and products are warranted to be free from defects in material and workmanship for a period of 30 days from the date of purchase. If the any part does not meet the limited warranty criteria an RMA number will have to be initiated to set up an exchange or refund.
The part must be returned to CORE Performance with an RMA number assigned to it, and if it is in acceptable condition, CORE Performance will issue credit directly to the customer. In addition, CORE Performance limited warranty specifically does not apply to products which have been modified or altered in any way, subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair, or used in racing activities or competitive applications other than those recommended by CORE Performance. This warranty does not warrant and disclaims all liability for products used in racing activities and/or applications, other than those specifically recommended by CORE Performance.
