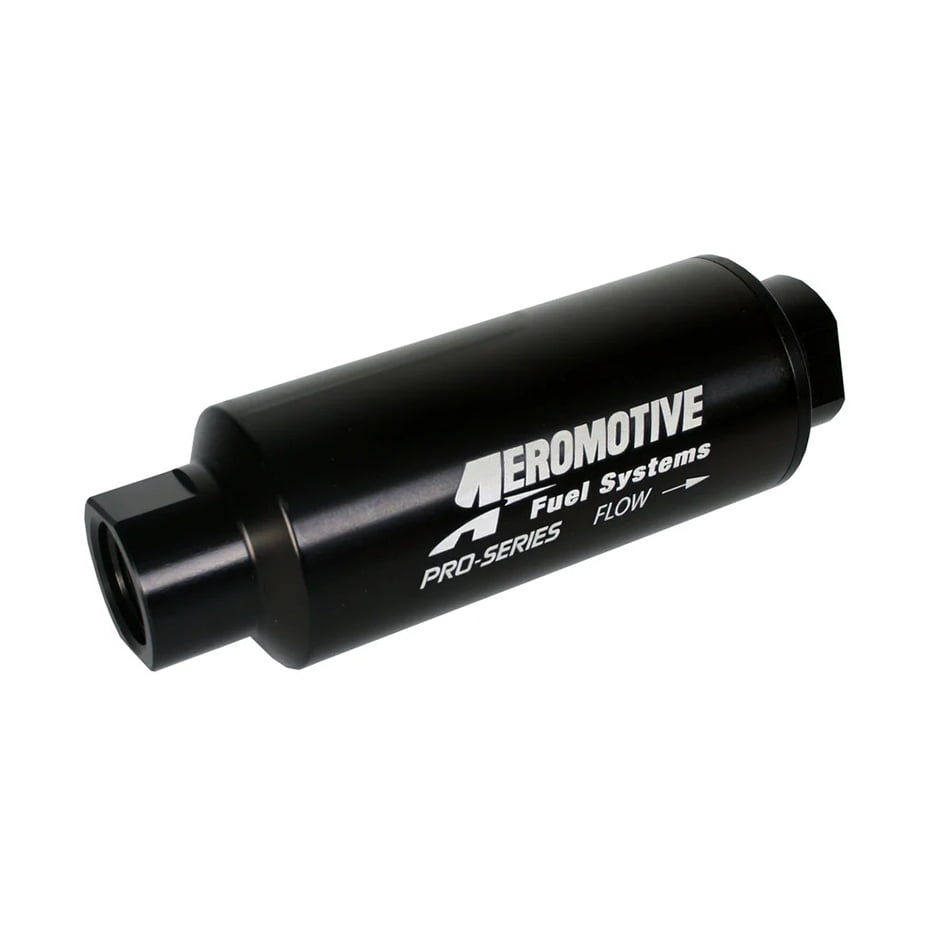

AEROMOTIVE PRO SERIES 10 MICRON MICROGLASS, ORB-12 BLACK FUEL FILTER
Couldn't load pickup availability
- Description
AEROMOTIVE PRO SERIES 10 MICRON MICROGLASS, ORB-12 BLACK FUEL FILTER Product Description:
Overview
Aeromotive fuel filters feature an advanced flow-through design to allow for steady fuel flow with less than a .5 psi pressure drop.
Designed for carbureted or fuel injected engines from 200 to 3,000 hp, they're made from 6061-T651 aluminum alloy with the impeccable machining and finish you've come to expect from all Aeromotive components.
Features:
- High-flow, 10-micron Microglass replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- 7” long x 2.5” diameter.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 and -8 line sizes.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Hard-Coat Black Anodized finish.
- Gasoline and alcohol compatible.
10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor.
Specifications
| Brand: | Aeromotive | |
| Part Number: | AEI-12339 | |
| Other Part Number: | 12339 | |
| Part Type: | Fuel Filter | |
| Fuel Filter Style: | Inline | |
| Inlet Quantity: | One | |
| Inlet Size: | -12 AN O-ring | |
| Inlet Attachment: | Female Threads | |
| Outlet Size: | -12 AN O-ring | |
| Outlet Quantity: | One | |
| Outlet Attachment: | Female Threads | |
| Filter Element Included: | Yes | |
| Smallest Particle Filtered: | 10 microns | |
| Filter Element Material: | Microglass | |
| Filter Housing Material: | Billet aluminum | |
| Filter Housing Finish: | Black anodized | |
| Overall Length (in): | 7.00 in | |
| Outside Diameter (in): | 2.50 in | |
| Mounting Bracket Included: | No | |
| Fittings Included: | No | |
| Clamps Included: | No | |
| Maximum Fuel Pressure (psi): |
400 psi | |
| Quantity: | Sold Individually | |
| In Store Pickup: | Colton, CA, USA |
Application
Universal.
100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump.
Warranty
Aeromotive, Inc. products are warranted to be free from defects in material and workmanship for one year from the date of purchase. Aeromotive, Inc. is interested in customer satisfaction, and has and will continue to make exceptions to their warranty period on an individual and case-by-case basis.
