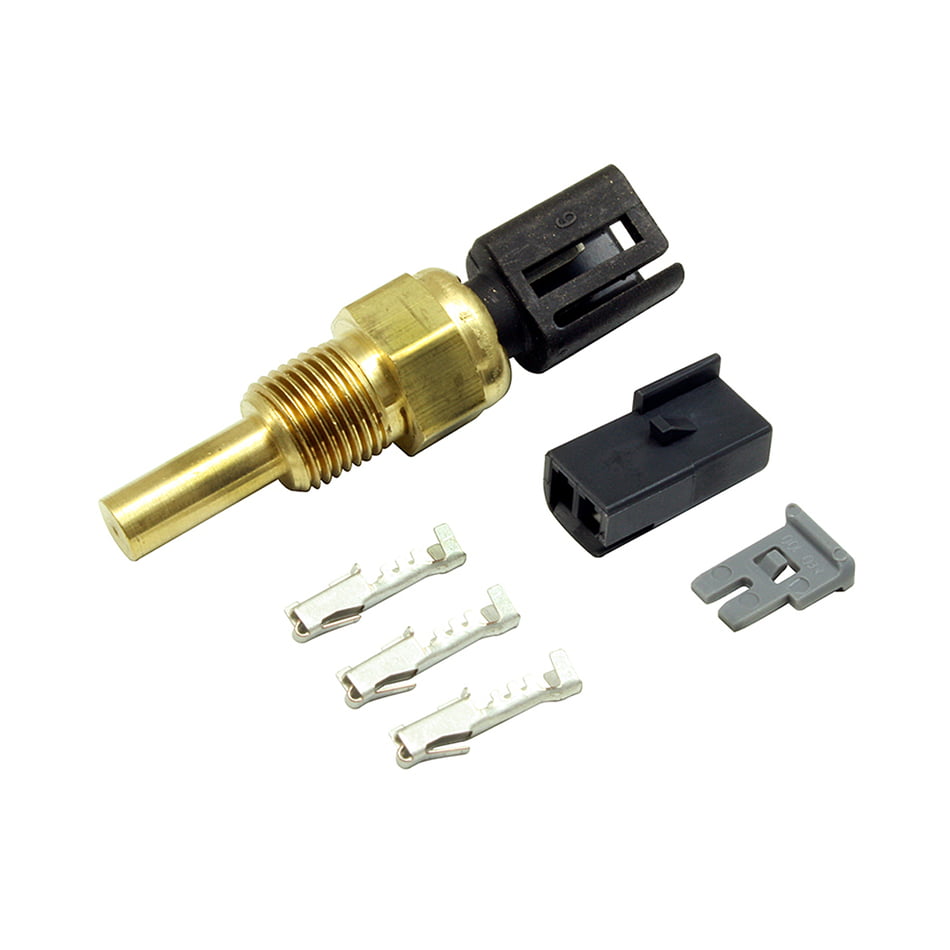

AEM WATER TEMPRATURE SENSOR KIT

$55.85 In Stock Pre-Order Sold out Part #: AEM-30-2012

Description

AEM WATER TEMPRATURE SENSOR KIT Product Description:

Overview

AEM offers 1/8" NPT DTM style connector, 1/8" NPT and 3/8" NPT water/oil temperature sensor kits. .

Additional features:

Weatherproof connector.
Includes mating connector & pins.
Senses the water temperature of the engine.

Includes:

Temperature Sensor with 1/8" NPT Male Thread.
High Performance DTM-Style Connector.
Aluminum Bung.
Connector & Pins.

Click for data sheet.

Specifications

Brand:		AEM
Part Number:		AEM-30-2012
Other Part Number:		30-2012
Part Type:		Gauges
Accuracy:		2°C / 3.6°.
Operating Temp:		-40C to 200C / -40F to 392F.
Resistive Range (Ω):
Dissipation Constant:		12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
Thermal Time Constant:		10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
Sensor Body:		Brass.
Hex Size:		1/2".
Thread:		1/8"-27 PTF.
Weight:		10 Grams.
Installation Torque:		13.5Nm / 10 ft-lbs.
Elec. Termination		Connector. Includes mating connector, pins & pin lock.
Quantity:		Sold as a kit.
In Store Pickup:		Colton, CA, USA

Application

Universal.
