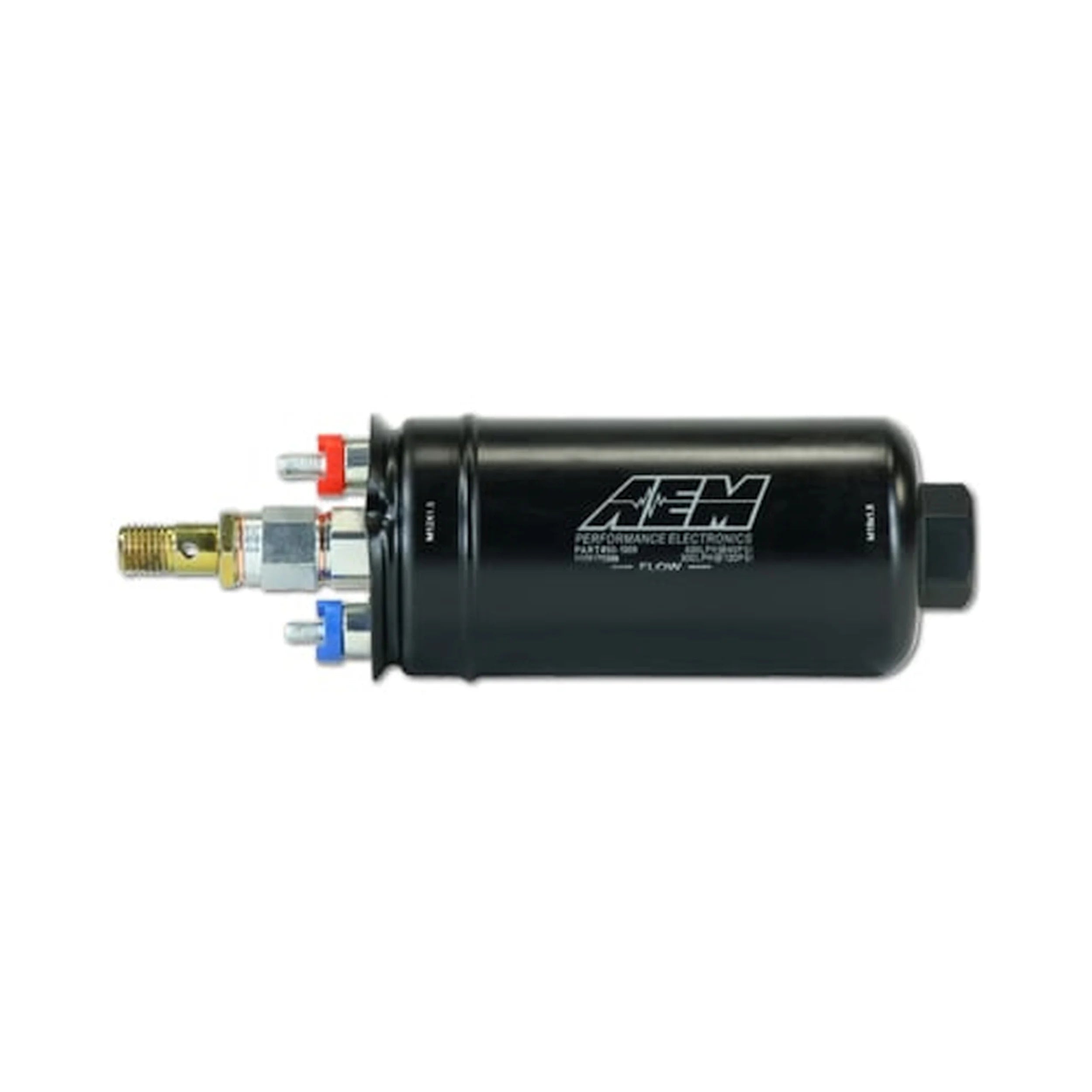

AEM 400LPH (Metric) Inline High Flow Fuel Pump
$199.95
In Stock
Pre-Order
Sold out
Part #: AEM-50-1009
Couldn't load pickup availability
- Description
AEM 400LPH (Metric) Inline High Flow Fuel Pump Product Description:
Overview

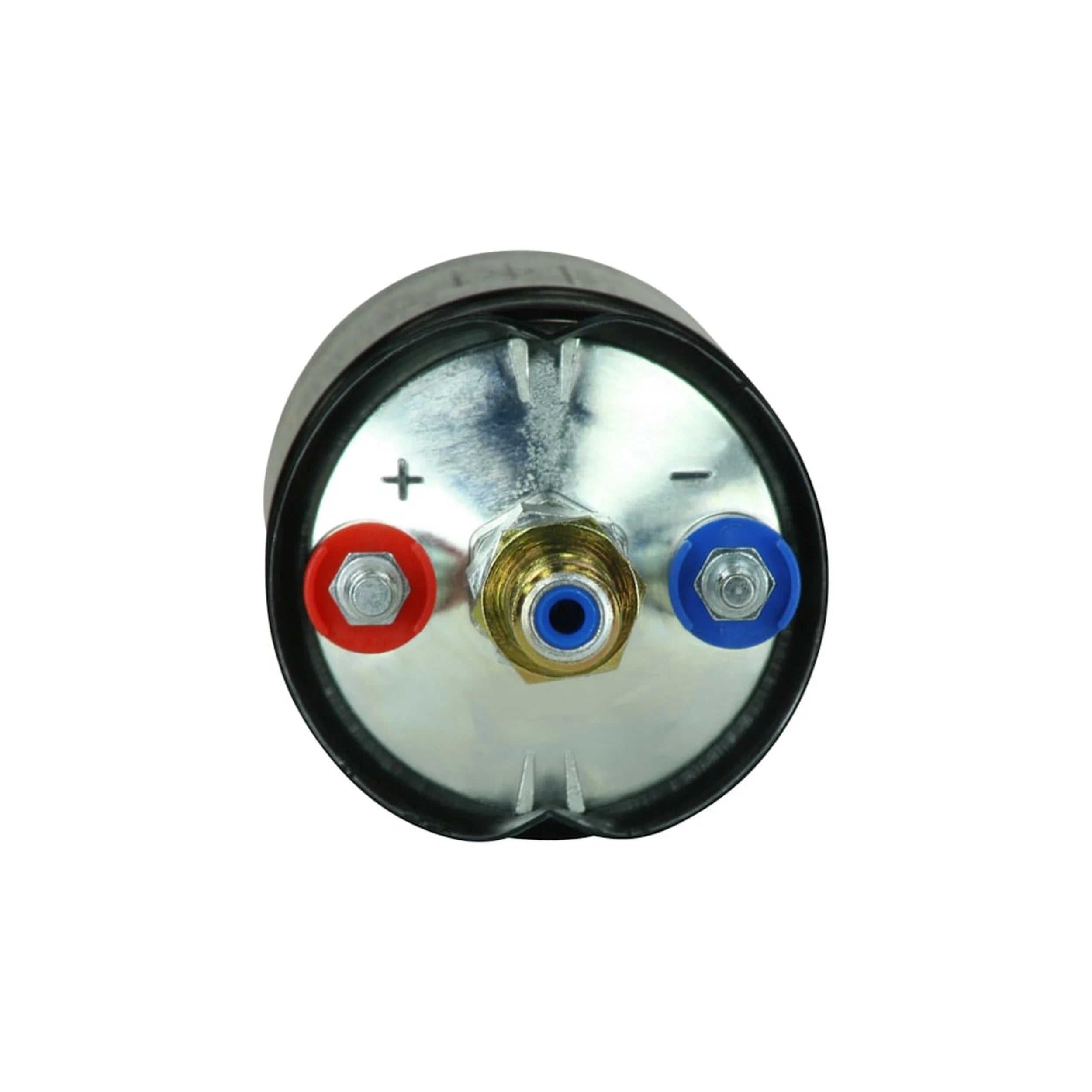

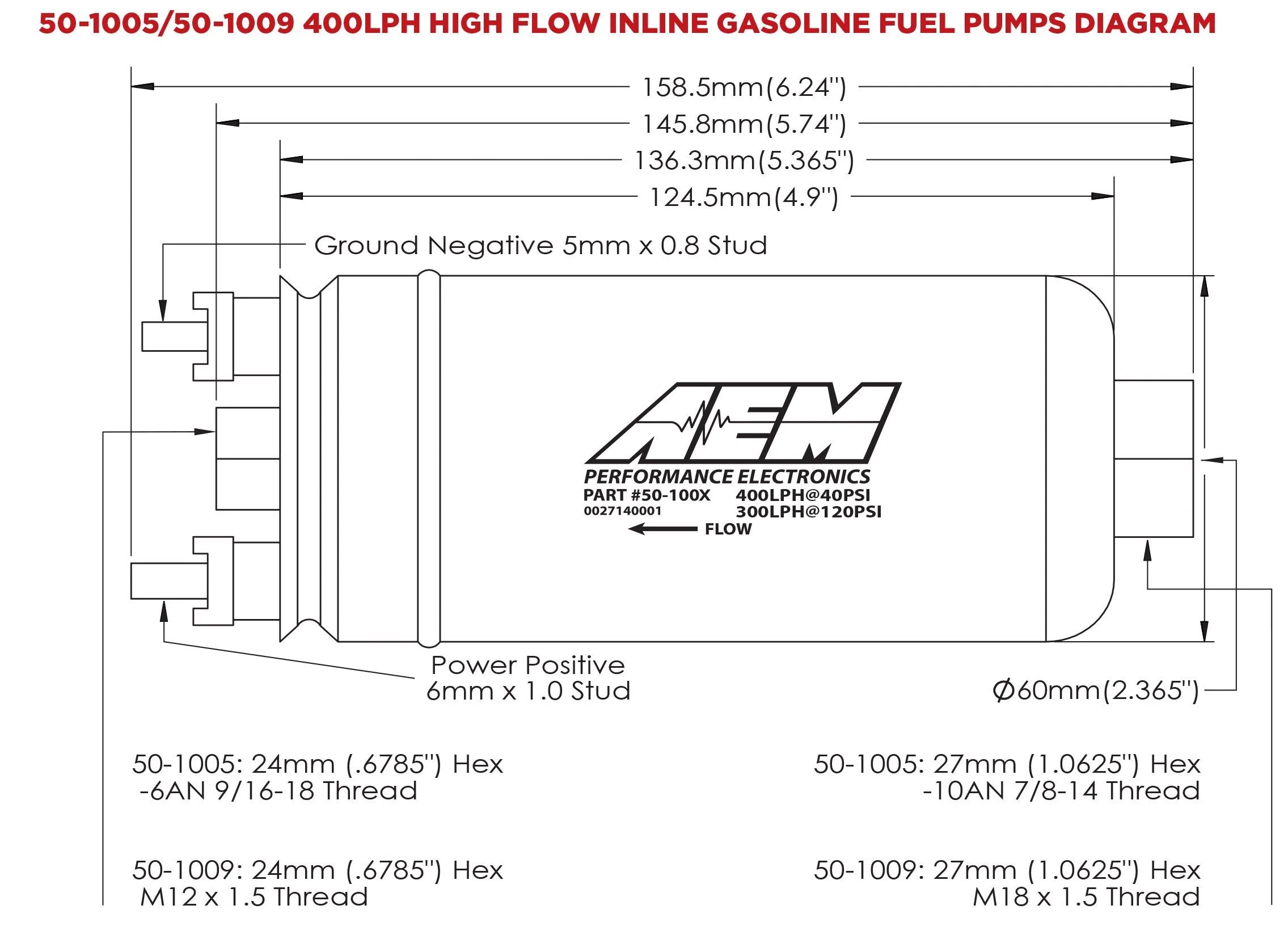

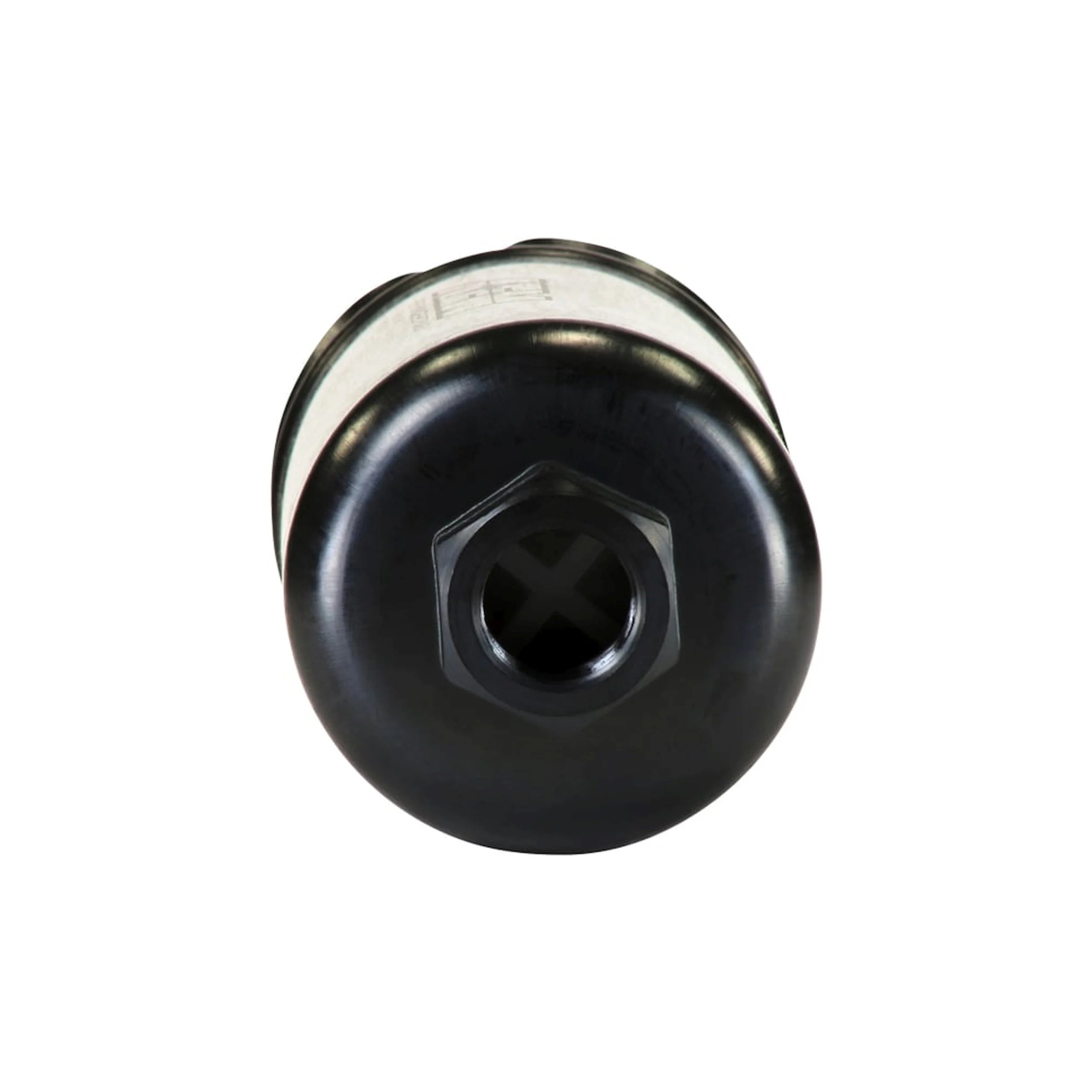

The 400lph Metric High-Flow Inline Fuel Pump has an M18X1.5 female inlet and M12x1.5 male outlet. It utilizes the industry standard "044 Style" envelope. It is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400lph (105 gph) at 40 PSI, 340 lph (90 gph) at 73 PSI, and 270 lph (71 gph) at 120 PSI. AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab. The AEM 400LPH AN Fittings High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels.
Features:
- Designed for high output naturally aspirated and forced induction EFI vehicles
- Popular "044 Style" physical configuration but with AN inlet & discharge port connections
- Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
- Installs externally or in-tank
- Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
Applications
Universal.
Warranty
Advanced Engine Management, Inc. warrants all of their products to be free from defects in material and workmanship for a period of 1 year. This warranty applies only to the original purchaser of the product and is non-transferable. AEM Power shall not be responsible for special, incidental, or consequential damages or cost incurred due to the failure of the product.
