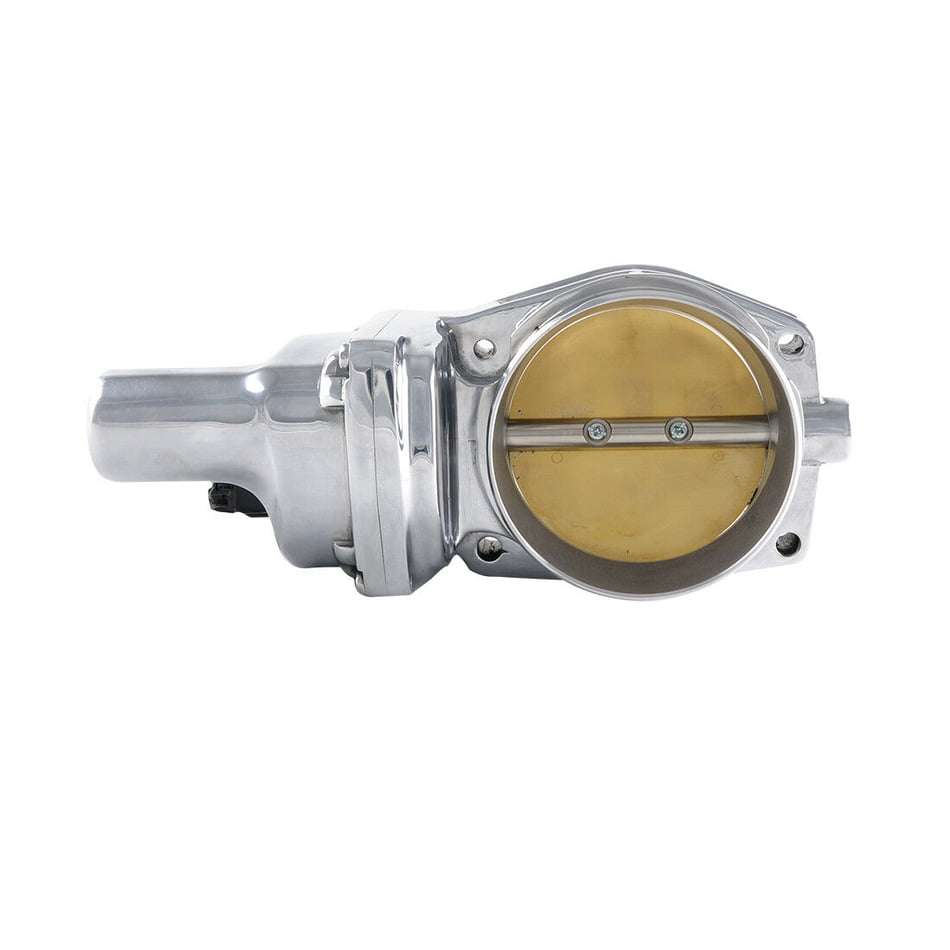

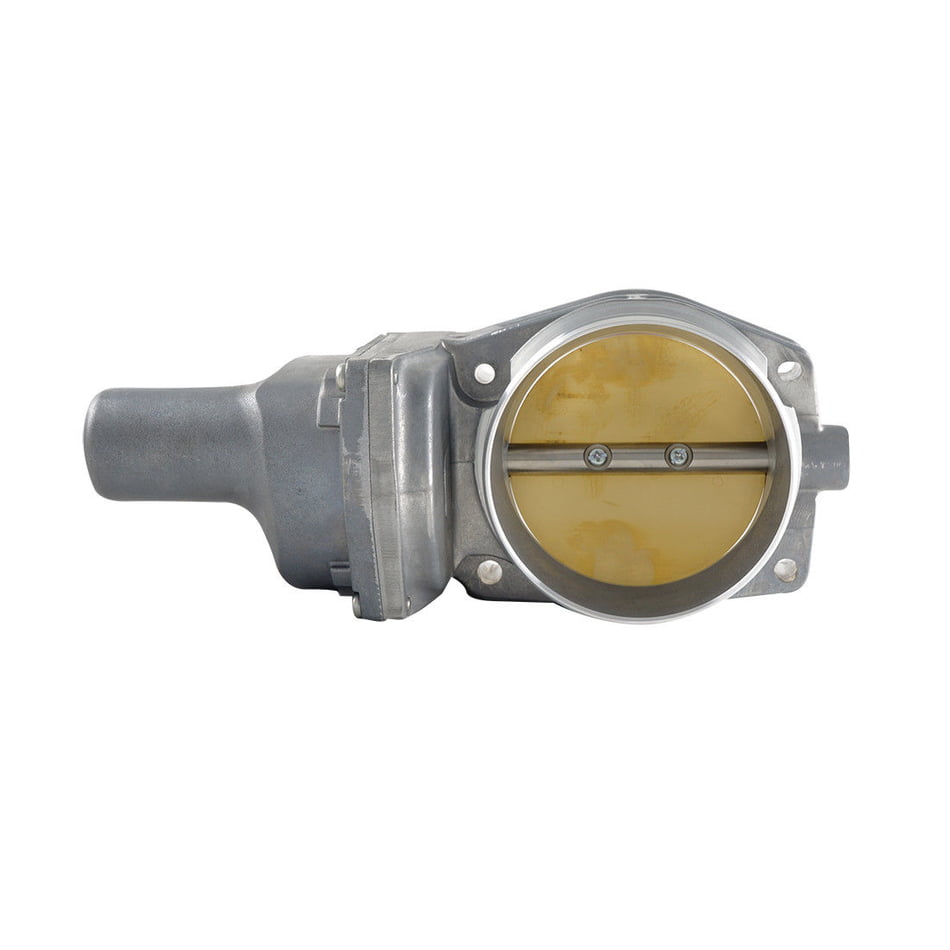

GM / ACDelco LS7 90MM ELECTRONIC THROTTLE BODY

The GM / ACDelco OEM LS7 90mm electronic throttle body has much more machining than a standard LS2 throttle body to promote better airflow. It has a stronger and quicker motor to withstand forced induction and provides a "snappier" throttle response. It will fit any LS style 4 bolt intake manifold for example; LS2, LS3, LS7, L92, L76.

It will work with most 2006+ vehicles currently running a 85mm truck or 90mm LS2 throttle body (additional tuning may be required to get the full potential from this t/b).

Note: This throttle body:

• Will not work on factory LS2 equipped vehicles.
• Is not a replacement for silver blade LS2 throttle bodies.
• Will not fit a 3 bolt LS1 or LS6 intake manifold.
• Will not work with a vehicle originally equipped with a LS1 or LS6 as the TAC modules read different voltages.

Available in a natural or polished finish. The polished finish version is a special order item and will have an extended ship time.

Any LS style 4 bolt intake manifold for example; LS2, LS3, LS7, L92, L76.

Most 2006+ vehicles currently running a 85mm truck or 90mm LS2 throttle body (additional tuning may be required to get the full potential from this t/b).

Note: This throttle body:

• Will not work on factory LS2 equipped vehicles.
• Is not a replacement for silver blade LS2 throttle bodies.
• Will not fit a 3 bolt LS1 or LS6 intake manifold.
• Will not work with a vehicle originally equipped with a LS1 or LS6 as the TAC modules read different voltages.

ACDelco replacement parts and ACDelco parts for Ford/Lincoln/Mercury cars and light trucks and approved non-Ford applications carry a 12-month/12,000-mile warranty, whichever comes first. The warranty begins on the date of purchase. Labor is not covered.
