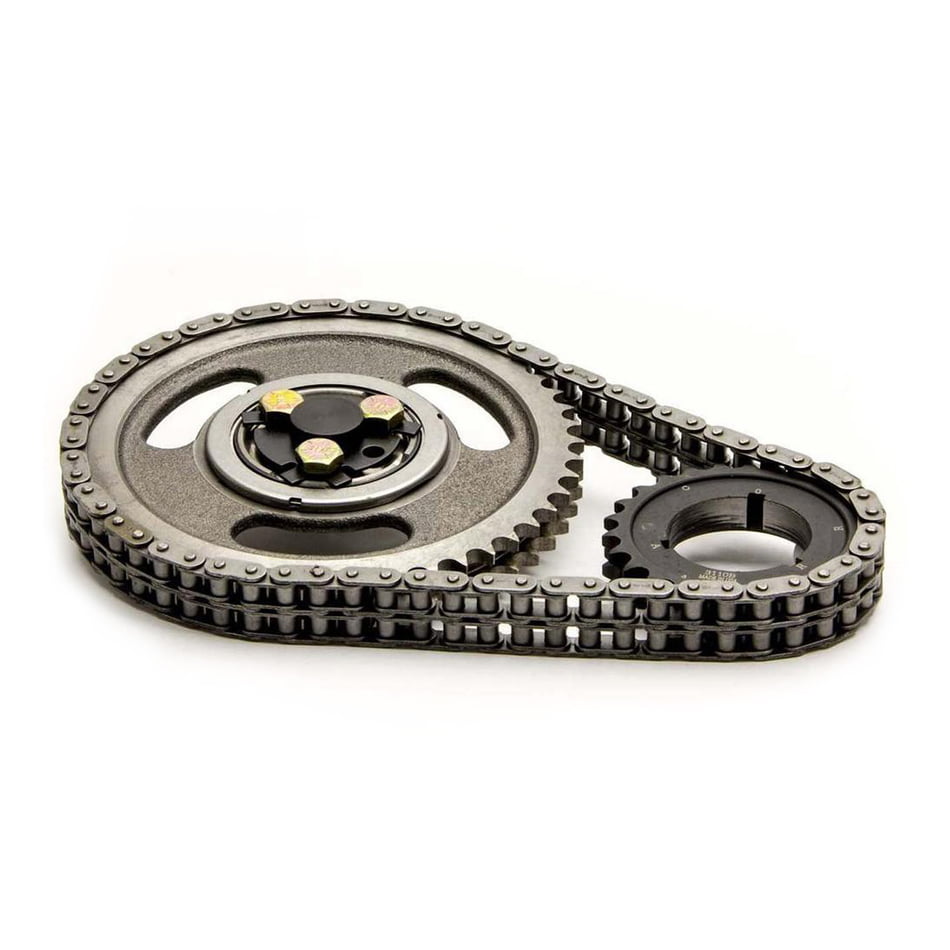

MANLEY TIMING CHAIN SET LS3 SB CHEVY WITH A STOCK TYPE SINGLE BOLT CAM

Manley timing chain sets are designed to provide consistent, accurate timing for your high performance engine. They feature a fully machined billet-steel camshaft and crankshaft sprockets, a full double-roller chain using .250 in. diameter rollers, and adjustable keyway crankshaft sprockets that are machined for and include either a brass wear shim or Torrington thrust bearing. Keep timing stable and accurate throughout the entire rpm range with these Manley timing chain sets.

Kits feature:

• Fully machined billet steel sprockets.
• Roller Chain designed with .250" diameter rollers.
• Nine keyway crankshaft sprocket.
• Adjustable to 0, +/-2, +/-4, +/-6, +/-8 degrees.
• Machined for and include Torrington thrust bearing.
• Designed for an OEM single bolt camshaft.

NOTE: When installing a double roller timing chain and gears in an LS engine, the oil pump is spaced out from the block for clearance. On most applications, this will create a clearance issue between the timing cover and oil pump. Test fit and grind as needed for clearance, before final assembly.

GM LS3 cam/engine.

Manley products, due to their intended use, are sold without warranty.
