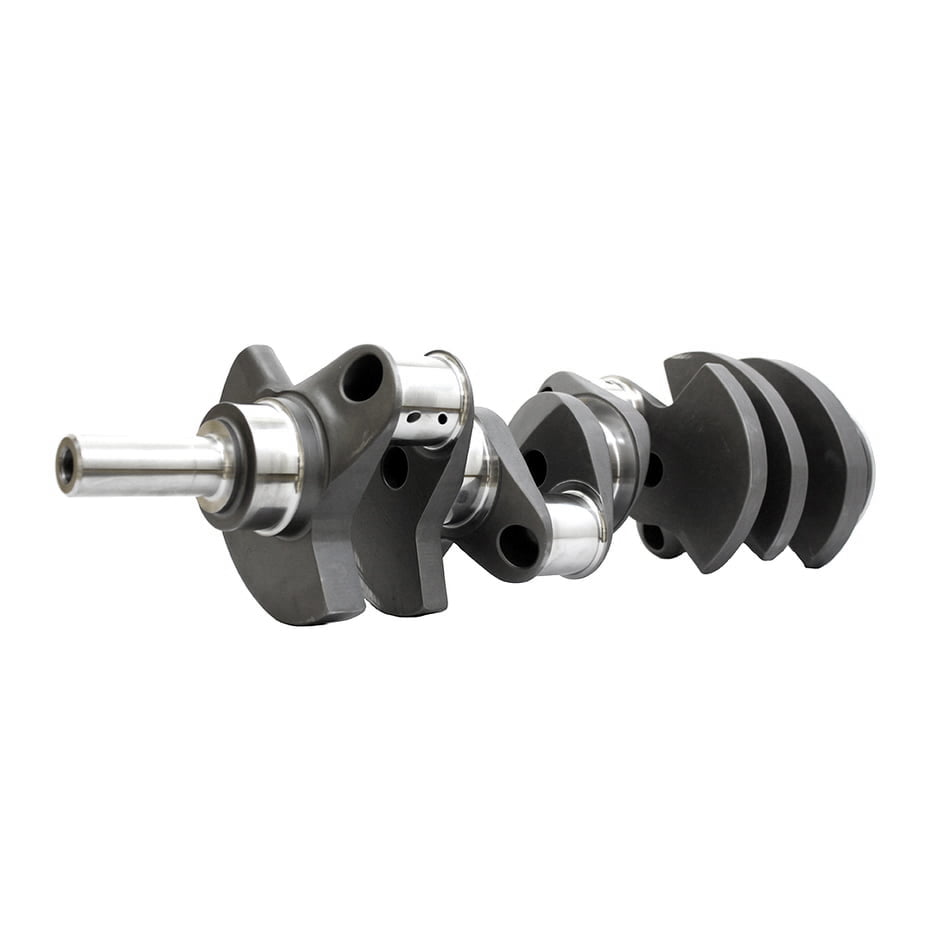

CALLIES MAGNUM CRANKSHAFT GEN III/IV LS1 4.000 STROKE, 2.1 JOURNALS, 2.559 MAINS 24x/58x

Callies Crankshafts are at the top of the industry for quality of finish and reliability. Their precise, no compromise production efforts deliver dimensional accuracy that is second to none. Concentricity and surface finish are the two most desirable features in a high performance crankshaft journal. Each journal must be perfectly concentric to its specified center-line, and journal surface lobing (microscopic peaks and valleys in the journal surface) must be limited to no more than .00006″ to further enhance oil film integrity at high engine speeds.

Every crankshaft is 100 percent inspected for critical dimensions, and the manufacturing equipment is constantly monitored for tolerance drift and tool degradation. At Callies, quality and durability really are a driving force behind their products.

Magnum – LS1 Gen III – IV

Standard Features:

• Average Weight for 4.000 in. Stroke Balanced to 1750g Bob. = 47 lbs.
• Magnums are Sold Rough Balanced to 1700g Bob.
• Gun Drilled Mains.
• All Rod Journals Lightened.
• Dual Linear Post Keyways.
• Stroke Availability from 2.600 in. to 4.500 in..
• Heat Treatment = Perma Case Deep Nitride.

Special Options:

• Additional Post Keyways, Custom Post Drilling.
• Custom Flange Bolt & Dowel Drilling.
• 2.100, 2.000, 1.888 and 1.825 Rod Journal Diameters.
• Extended Length Post for LS7 Type Front Assembly.
• Custom Reluctor Hub Machining or Removal.
• 24 or 58 Tooth Reluctor Installed.

Note: This is a Special Order item, please give us a call (909.291.7550) for a lead time.

Callies products, due to their intended use, are sold without warranty.
