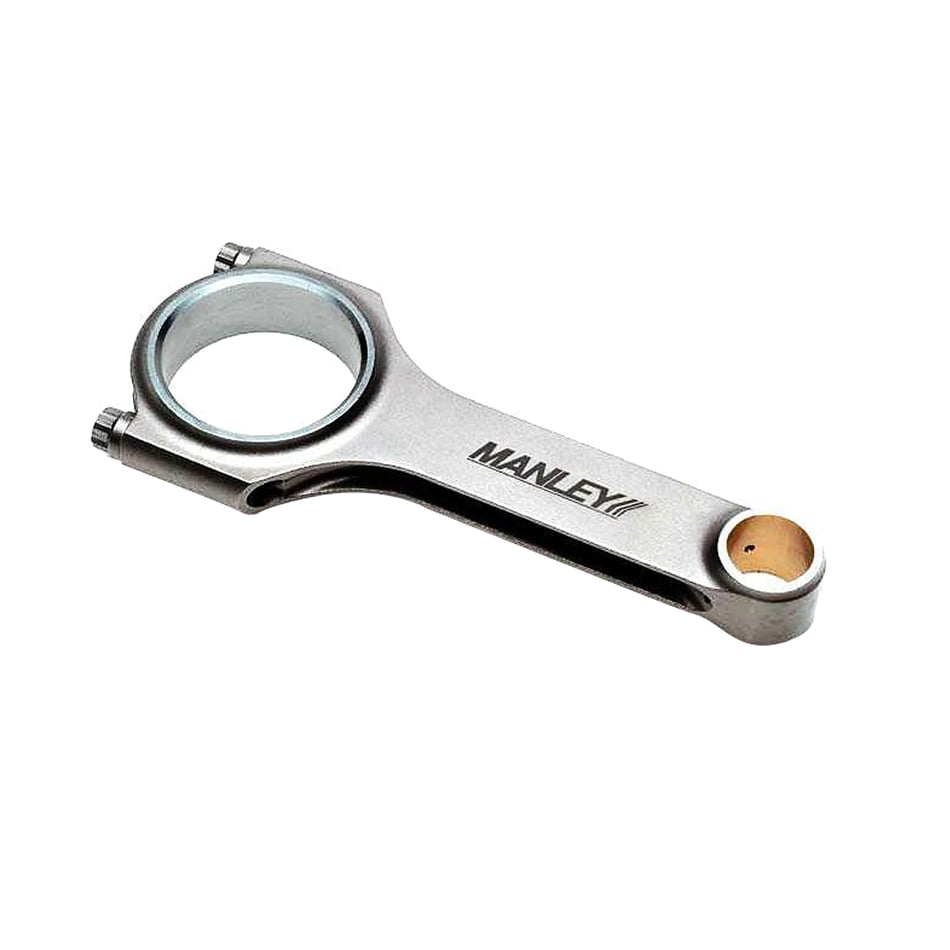

MANLEY LS SBC CONNECTING ROD SET

$796.38 In Stock Pre-Order Sold out Part #: MAN-14051-8-9281

Description

MANLEY LS SBC CONNECTING ROD SET Product Description:

Overview

The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes Manley takes very seriously. You will find the Manley H-Beam rods superior to others on the market.

Requires pistons ready to accept 6.125'' length rods. Stock LS-1 rods are 6.100'' long. Note the pin bore on the p/n 660-14051-8 is .9281''. Stock LS-1 pins are .945'' diameter. These rods are also provided with ''Low Profile'' cap screws enabling extra block and oil pan clearance on stroker applications.

Specifications

Brand:		Manley
Part Numbers:		MAN-14051-8, MAN-14053-8
Other Part Numbers:		14051-8, 14053-8
Part Type:		Connecting Rods
Connecting Rod Length Center to Center (in):		6.125"
Connecting Rod Beam Style:		H Beam
Connecting Rod Material:		Forged 4330 steel
Connecting Rod Finish:		Shot-peened
Cap Retention Style:		Low profile cap screw
Connecting Rod Bolt Brand:		ARP
Connecting Rod Bolt Diameter:		7/16"
Connecting Rod Bolt Material:		Premium
Connecting Rod Bolt Head Style:		12-point
Approximate Connecting Rod Weight (g):		656g
Rod Journal Diameter (in):		2.100"
Big End Bore Diameter (in):		2.2250"
Pin End Bore Diameter:		0.9281" or .9457"
Weight Matched Set:		Yes
Remanufactured:		No
Magnafluxed:		Yes

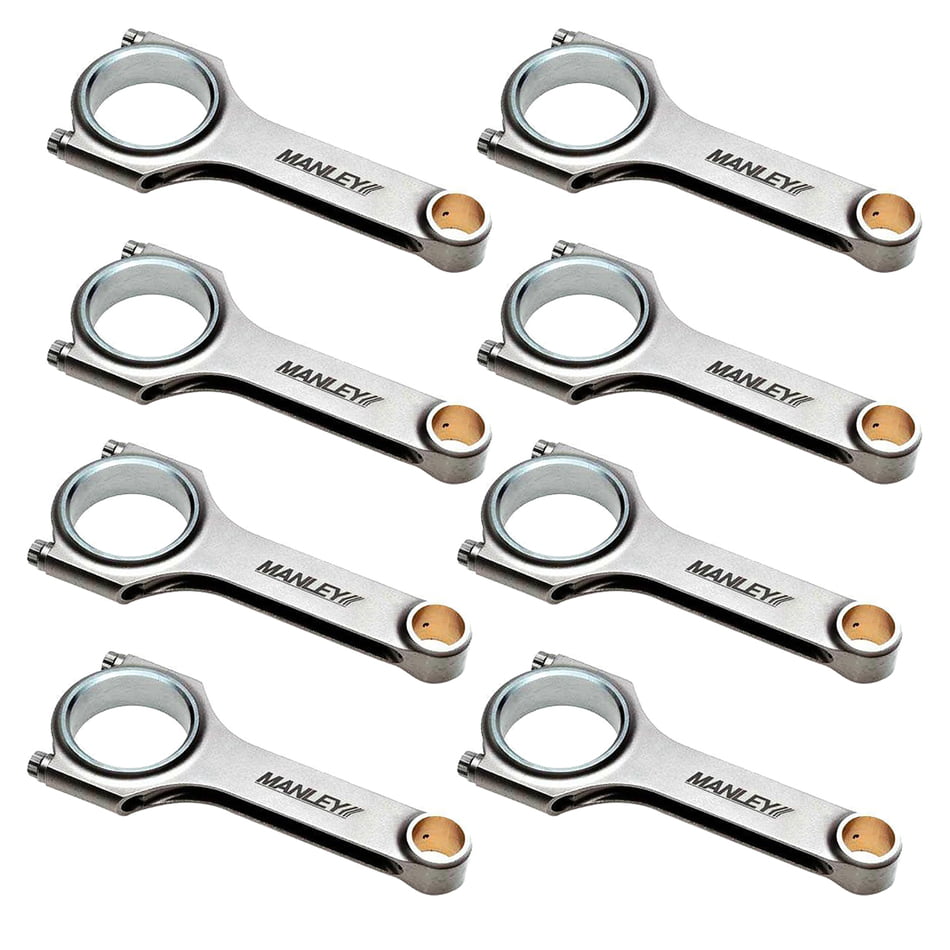

Quantity:		Sold as a set of 8
In Store Pickup:		Colton, CA, USA
