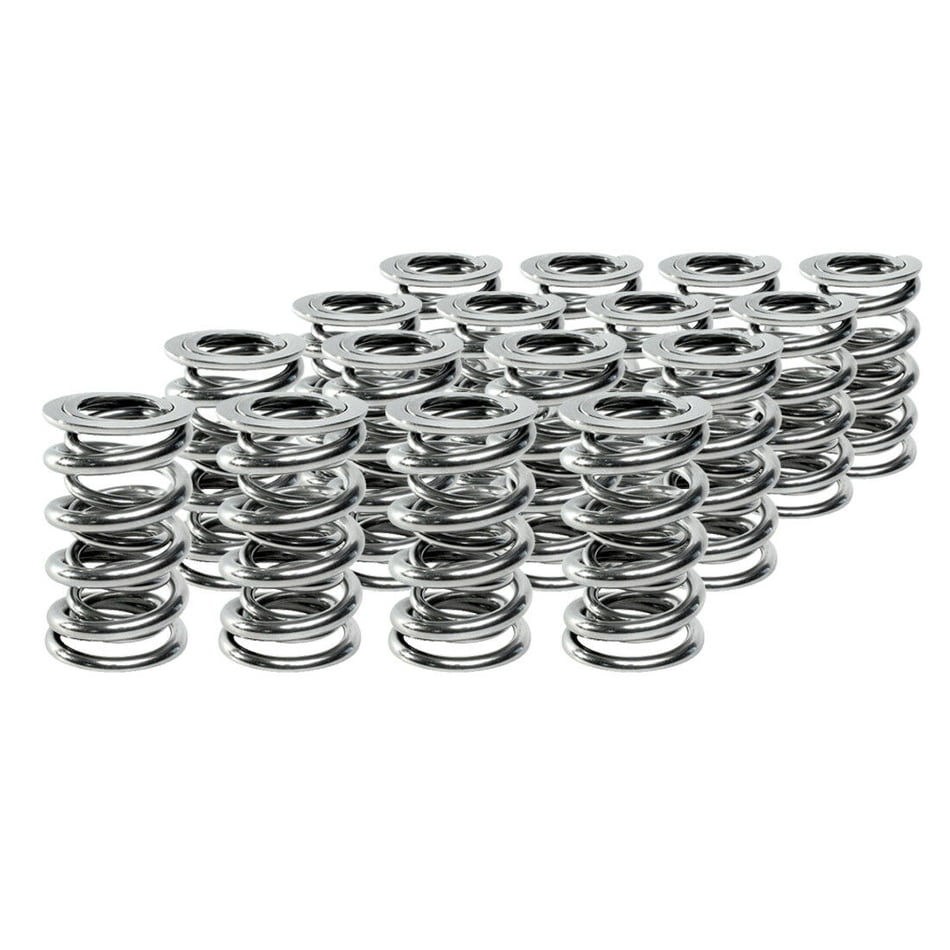

MANLEY NEXTEK SERIES VALVE SPRINGS LS/LT1/LT4 .660 LIFT
Couldn't load pickup availability
- Description
MANLEY NEXTEK SERIES VALVE SPRINGS LS/LT1/LT4 .660 LIFT Product Description:
Overview
These Manley NexTek valve springs are better-designed valve springs using state-of-the-art machinery for purpose-built racing engines. They're manufactured from super-clean, high-tensile chrome silicon steel and are shot-peened to MIL specs for maximum fatigue life. They feature a proprietary, multi-step heat-treating that minimizes load loss and have computer-aided modeling to minimize valve bounce and valve gear separation.
The Manley NexTek valve springs are smaller diameter and lightweight, allowing engines to rev higher faster. They have an extended tip thickness designed to eliminate overload breakage, and their tightly controlled open-end flatness reduces valve stem side loading.
Set of 16.
Specifications
| Brand: | Manley | |
| Part Numbers: | MAN-221436-16 | |
| Other Part Number: | 221436-16 | |
| Part Type: | Valve Springs | |
| Valve Spring Style: | Standard | |
|
Number of Springs Per Valve: |
Dual | |
| Outside Diameter of Outer Spring (in.): | 1.295" | |
| Inside Diameter of Inner Spring (in.): | 0.676" | |
| Spring Rate (lbs./in.): | 379 lbs./in. | |
| Coil Bind Height (in.): | 1.100" | |
|
Damper Spring Included: |
No | |
|
Valve Springs Coated: |
No | |
| Wgt/Grams: | 93 | |
| Quantity: | Sold as a set of 16. | |
| In Store Pickup: | Colton, CA, USA |
Application
GM LS/LT1/LT4 style cylinders heads.
Warranty
Manley products, due to their intended use, are sold without warranty.
