AEM 100 PSIg BRASS SENSOR KIT
$89.35
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
CODE: AEM-30-2131-100
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
AEM 100 PSIg BRASS SENSOR KIT Product Description:
Overview
AEM offers brass PSIg sensors in 15, 100 and 150. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.
Additional features:
- Brass sensors accurate to within 3% of full scale. (pressure sensors)
- High-quality sealed sensor housings are virtually impervious to automotive fluids. (360-degree welded wetted area)
- Connector and pins included.

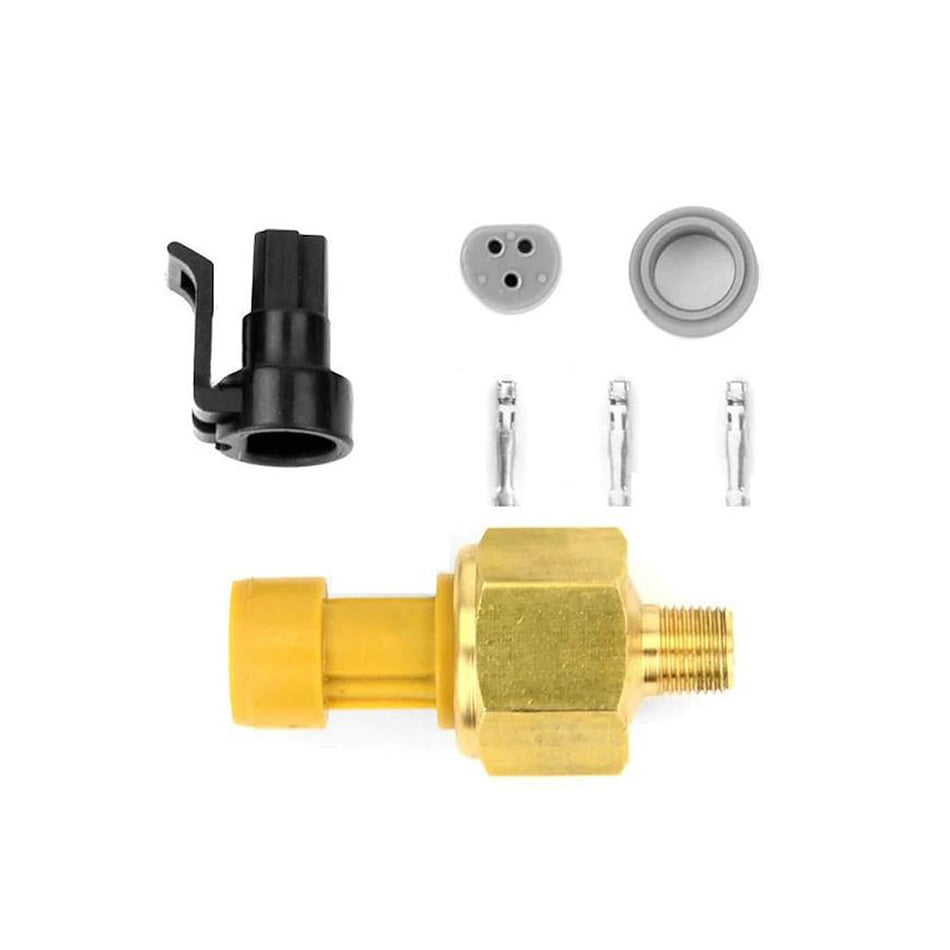

Includes:
- 100 PSIg Brass Sensor.
- Connector.
- Pins.
- Pin Lock.
Specifications
| Brand: | AEM | |
| Part Number: | AEM-30-2131-100 | |
| Other Part Number: | 30-2131-100 | |
| Part Type: | Gauges | |
| Accuracy: | +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity. | |
| Operating Temp: | -40C to 105C / -40F to 221F. | |
| Burst Pressure: | 200PSI. | |
|
Response Time: |
1ms. | |
|
Vibration: |
100 to 2000Hz, 20g Sinusoidal, 3 Axes. | |
| Sensor Body: | Brass | |
| Wetted Materials: | 304L & 316L Stainless Steel. | |
| Thread: | 1/8" NPT Male Thread. | |
| Weight: | 85 Grams. | |
| Output: | .5 to 4.5Vdc Linear. | |
| Elec. Termination | Integral weatherproof connector, includes mating connector, pins & pin lock. | |
| Quantity: | Sold as a kit. | |
| In Store Pickup: | Colton, CA, USA |
Application
Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.
Warranty
Advanced Engine Management, Inc. warrants all of their products to be free from defects in material and workmanship for a period of 1 year. This warranty applies only to the original purchaser of the product and is non-transferable. AEM Power shall not be responsible for special, incidental, or consequential damages or cost incurred due to the failure of the product.
